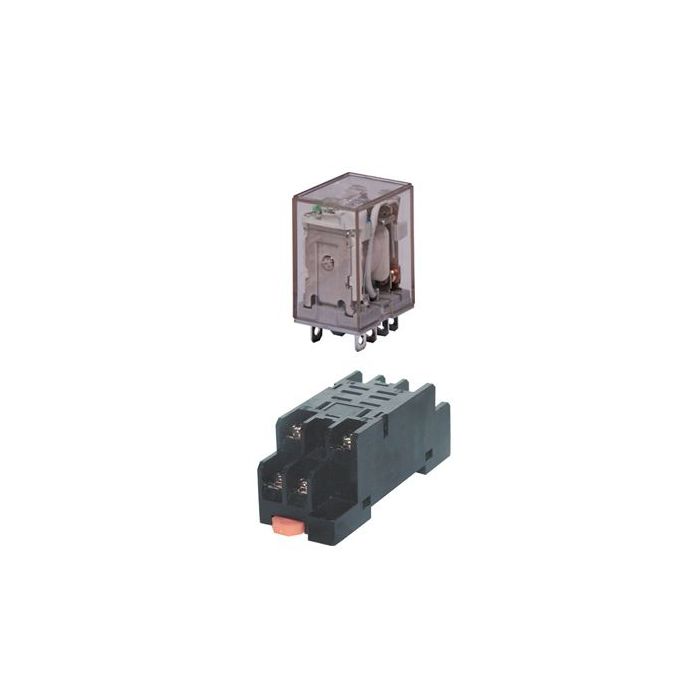

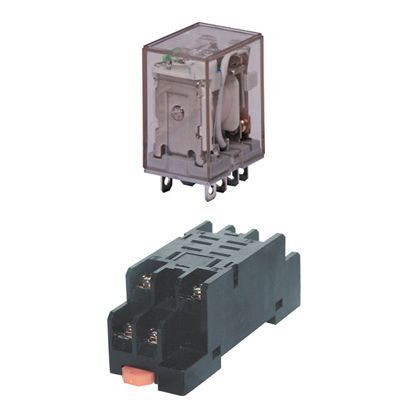

12240RELAY 12 VDC Coil 10A DPDT Cradle Relay
The 12240RELAY is a 12 VDC coil DPDT cradle relay designed for automatic control, telecommunications, household appliance and industrial machinery applications requiring a 10A DPDT relay with cradle base support.
Key Features
- DPDT relay format provides two changeover contact sets for control wiring.
- 10A total current rating supports common switching duties within the stated limits.
- Compatible with S4316 and S4318 relay bases.
- Anti-shock and anti-vibration design supports control-panel environments.
- Shared relay specifications provide clear electrical selection data.
- Catalogue Family:
- ACCESSORIES & OTHERS
- Relay Family:
- S4310/S4312/S4314 10A DPDT cradle relays
- Coil Variant:
- S4310 12 V DC
- Max Voltage:
- 300 V AC, 30 V DC
- Max Current:
- 10 A total
- Max VA / Watts:
- 2800 VA / 280 W
- Contact Material:
- Silver cadmium oxide
- Coil Resistance:
- 160 Ohm
- Coil Power:
- 900 mW
- Pick-Up Voltage:
- 9.6 V
- Release Voltage:
- 1.2 V
- Operating Temperature:
- -40 to 70 deg C
