4579HSELM0SC
SKU
4579HSELM0SC

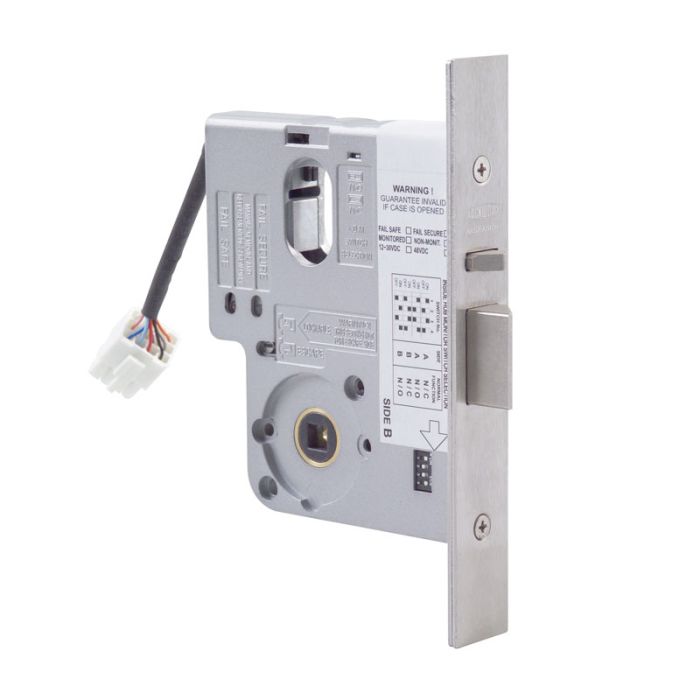

Lockwood High Security Electric Mortice Lock, 89mm Backset, PTO/PTL, 12-24V DC (SCEC)
For use in high security government, institutional and commercial projects. The 3579 Series Mortice Lock has been successfully SCEC approved for secure area applications.
- Restricted handling type features of the lock (external hub fixed, internal hub released under fire/emergency release, reversible latch are accessible without removing the latch
- 570 oval type cylinders and retaining pin can be used (cylinder must also be SCEC approved for secure area)
- 2 x 1.2mm stainless steel plates fixed through lock provides increased strength to cylinder and latch areas of the lock
- 12V / 24V DC
- 500mA max, 80mA holding current @ 12V DC
- 275mA max, 50mA holding current @ 24V DC
Format | Label | Description | Type | Size | Download |
---|---|---|---|---|---|
Specsheet | High Security Mortice Spec sheet | 1.3 MB | Download |
