A2030D
SKU
A2030D

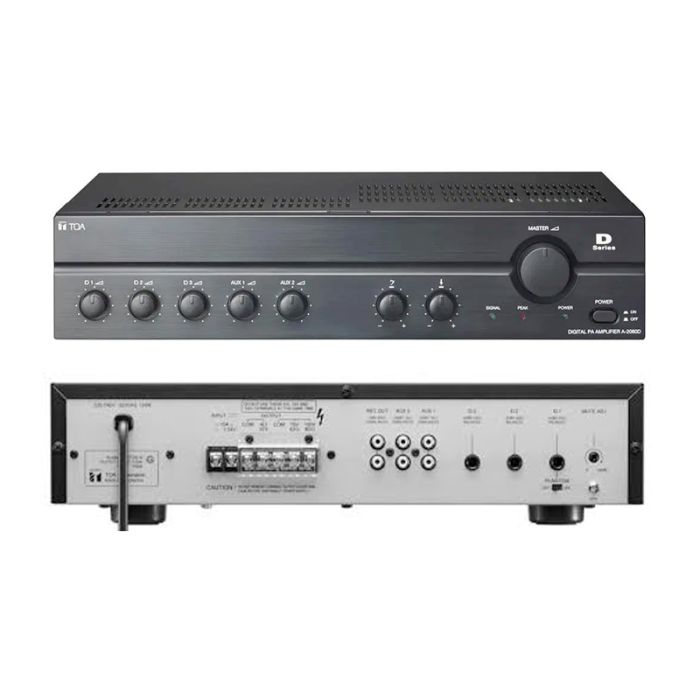

TOA 30W Mixer Amplifier, 3x Balanced MIC
Inputs, 2x Line Inputs, 100V Output.
240VAC
Format | Label | Description | Type | Size | Download |
---|---|---|---|---|---|
Manual | A2030D-Manual | 2 MB | Download | ||
Brochure | A2030D Brochure | 385.5 KB | Download | ||
Specsheet | A2030D specification | 865.9 KB | Download |
Description
The TOA A2030D 30W Public Address Amplifier is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches and large rooms.
Specifications
Power Source220 - 240 V AC, or 24 V DC
Rated Output30 W
Power Consumption34 W (EN60065), 2 A (DC operation at rated output)
Frequency Response50 - 20,000 Hz (3 dB)
Distortion1% or less at 1 kHz, 1/3 rated power
InputMIC 1 - 3: -60 dB*, 600 O, balanced, equivalent to XLR-3-31 type AUX 1, 2: -20 dB*, 10 kO, unbalanced, RCA pin jack
OuputSpeaker out: Balanced (floating), M3.5 screw terminal, distance between barriers: 8.3 mm (0.33?) High impedance: 330 O (100 V), 170 O (70 V) Low impedance: 4 O (11 V) Rec out: 0 dB*, 600 O, unbalanced, RCA pin jack
Phantom PowerDC +21 V (MIC 1)
841
The TOA A2030D 30W Public Address Amplifier is a high cost-performance mixer power amplifier suited for broadcasting paging or background music in schools, offices, shops, factories, mosques, churches and large rooms.
Specifications
Power Source220 - 240 V AC, or 24 V DC
Rated Output30 W
Power Consumption34 W (EN60065), 2 A (DC operation at rated output)
Frequency Response50 - 20,000 Hz (3 dB)
Distortion1% or less at 1 kHz, 1/3 rated power
InputMIC 1 - 3: -60 dB*, 600 O, balanced, equivalent to XLR-3-31 type AUX 1, 2: -20 dB*, 10 kO, unbalanced, RCA pin jack
OuputSpeaker out: Balanced (floating), M3.5 screw terminal, distance between barriers: 8.3 mm (0.33?) High impedance: 330 O (100 V), 170 O (70 V) Low impedance: 4 O (11 V) Rec out: 0 dB*, 600 O, unbalanced, RCA pin jack
Phantom PowerDC +21 V (MIC 1)
841
