A3114

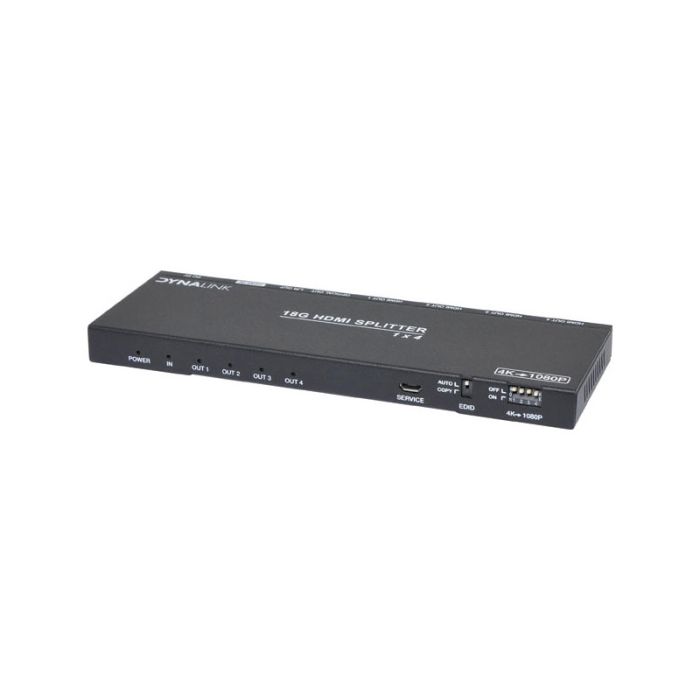

This 1x4 HDMI Splitter With Downscaler & Audio Extractor is designed to split a single HDMI source into four HDMI outputs. This allows for a HDMI source to be distributed to multiple screens within a single location such as a venue, function centre etc. It can also be used to for distributed video signage requirements. It also extracts audio from the HDMI signal and converts it into S/PDIF optical output or 3.5mm stereo jack output. Supports full 4K @ 60Hz input and output with downscale to 1080p function. Power supply included.

• 1 input / 4 outputs.
• HDMI 2.0b, HDCP2.2/HDCP1.4 compliant.
• Maximum HDMI resolution up to 4K2K@50/60Hz (4:4:4).
• Supports digital & analog audio extraction from HDMI source.
• Supports output bypass and 4K to 1080P downscaling.

• HDMI Compliance: 2.0b
• HDCP Compliance: 2.2 / 1.4
• Video Bandwidth: 18Gbps
• Video Resolution: Up to 4K 60Hz 4:4:4
• Colour Space: RGB / YCbCr 4:4:4, 4:2:2
• Colour Depth: 4K 60Hz 8-bit, 1080p 12-bit
• HDMI Audio: LPCM, Dolby digital, True HD,
• DD+, DTS, DTS-EX, DTS HD Master, DTS High Res, DSD
• Stereo Audio: PCM 2.0
• Optical Audio: LPCM, Dolby 5.1, Dolby True HD,
• DD+, DTS, DTS-ES 6, DTS-HDMA 5.1, DTS HD-HRA 5.1
• Inputs: HDMI x 1
• Outputs: HDMI x 4, 3.5mm stereo audio jack, S/PDIF optical
• Case Dimensions: 180W x 62D x 14H
• Power Supply: 5V DC 1A (included)
