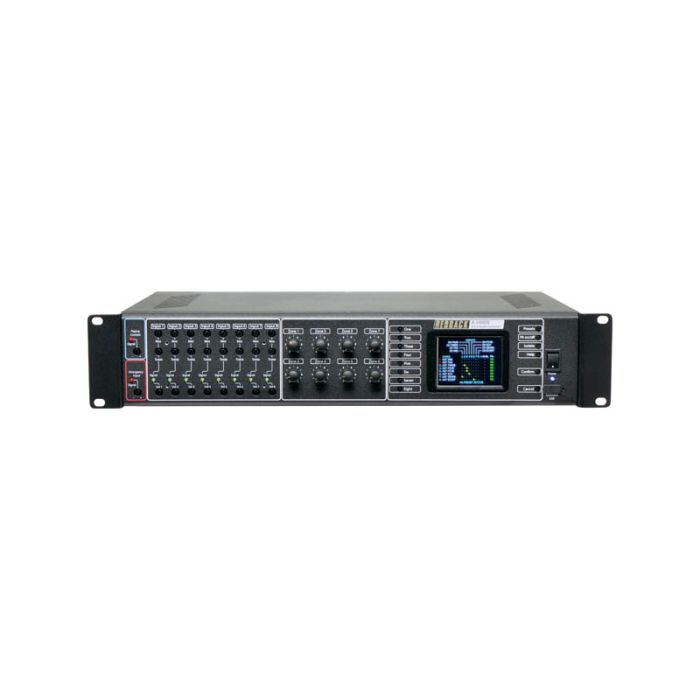

A4480B
Designed to meet the demands of todays complex audio installations. This very versatile, cost effective, PA/BGM control system is suitable for clubs, pubs, gyms etc. It is ideally suited as a central controller for all audio inputs and outputs in a multizone installation. The design is highly flexible and easily set up by the installer. No special training or programs are required.
Optional accessories/features for the A4480B:
Zone and emergency over-ride paging via A 4481 paging console.
Remote zone control of volume and music sources via A 4493 wall plate.
Preset selection via A 4476 preset wall plate.
Local microphone or music input connection via A 4931 and A 4493 wall plates.
Package Contents
A 4480B Audio Switcher
M 8973 24V 5A Power Supply
240V AC power lead (suits Australian Standard)
USB - PS2 compatible keyboard (Altronics D 2111)
Acrylic anti tamper cover
- 8 Stereo RCA line inputs (internally mono mixed).
- 2 Microphone XLR inputs with phantom power option.
- Adjustable line input sensitivity 0.3/0.7V.
- Individual bass, treble and volume controls of all line inputs.
- 8 Balanced 3 pin XLR line outputs.
- Individual volume controls of all 8 outputs.
- Alert/evacuation/pre chime tone generator included (alert/evac tones comply to AS1670.4) .
- Emergency balanced input with selectable phantom power and input sensitivity.
- Programmable labelling of input sources and output zones via USB keyboard.
- Programme isolate function.
- Four programmable presets.
- Tampering lockout feature.
- Power fail trigger.
- 240V AC or 24V DC operation.
- 19” Rack Mount (2 unit).
