A4493

Input Source Selection Remote Plate

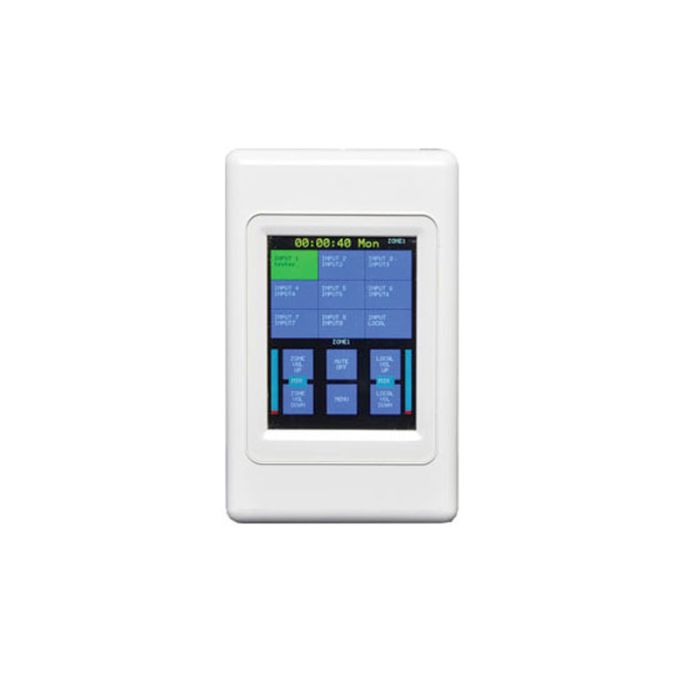

This wallplate connects back to the main A4480B via Cat5 cable and permits remote selection of the audio source and volume adjustment in that zone. In addition, when connected to the a local zone input wallplate (see connection matrix for compatible models), it allows the use of a local signal source, such as a wired mic, radio mic or aux source such as a mobile device, which VOX mutes the selected input from the A 4480B. The LCD displays the zone name, the input sources and zone and local input volume levels.

Note: The volume controls only adjust the volume of the 8 aux input sources, plus the local input (when used). General and emergency paging from the A 4480A Audio Switcher will override these volume settings.


Part of the Redback UTP Solutions Range.
This product is part of the Redback UTP solutions range, a suite of interchangeable transmitters and receivers for connecting different types of audio signals between local zones and equipment racks.

Features

• Remote selection of input audio source
• Volume control of zone input
• Volume control of local input
• Mute function
• Zone Lockout
• Personal Identification Number (PIN) Menu Lockout Function
• 2 stage wall plate functionality Lockout
• Provision for input of local microphone or line level audio via compatible Redback wall plate
• Cat5e connection to A 4480B
• Powered from the A 4480B
