A4931
SKU
A4931

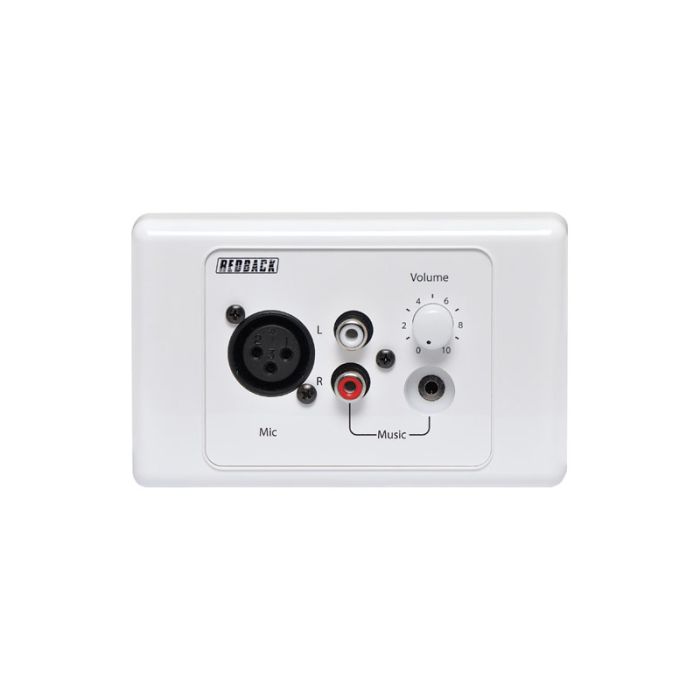

Microphone/Line Pre Amplifier Wallplate
This mic/line pre-amplifier wallplate accepts either a microphone or line input and converts the signal to a balanced high level output. The 3V output signal is carried via Cat5e cable, (suitable for distribution up to 300m without interference) back to a Redback compatible UTP receiver unit. Mic input is via a balanced XLR whilst the line input is via 2 x RCA sockets or 3.5mm audio jack for portable devices with a lower level line output. Power is supplied to the wallplate over the UTP cabling.
Use with Redback A4480B and A4432
The wall plate provides a means of overriding the input to a zone with a local input source located in that zone. An example may be a mobile phone for background music or a microphone for speeches at a wedding function.
Part of the Redback UTP Solutions Range.
This product is part of the Redback UTP solutions range, a suite of interchangeable transmitters and receivers for connecting different types of audio signals between local zones and equipment racks.
- Input Mic Level Sensitivity: 3mV
- Input Line Level Sensitivity: 1V
- Music Input Level Sensitivity: 500mV
- .
This mic/line pre-amp wallplate accepts either a microphone or line input and converts the signal to a balanced high level output. The 3V output signal is carried via Cat5e cable, (suitable for distribution up to 300m without interference) back to the A 4930 Hub. Mic input is via a balanced XLR whilst the line input is via 2 x RCA sockets or 3.5mm audio jack for portable devices with a lower level line output. The wallplates receive power down the Cat5e cable from A 4930.
Compatibility with other Redback Products
This wallplate is also part of the accessories for the following Redback Products:
A 4480A 8x8 Audio matrix system.
A 4928 Single output microphone/line hub (for stand alone use).
A 4432 4+4 Channel Mixer With Wallplate Source Control760
