AC225IP-B

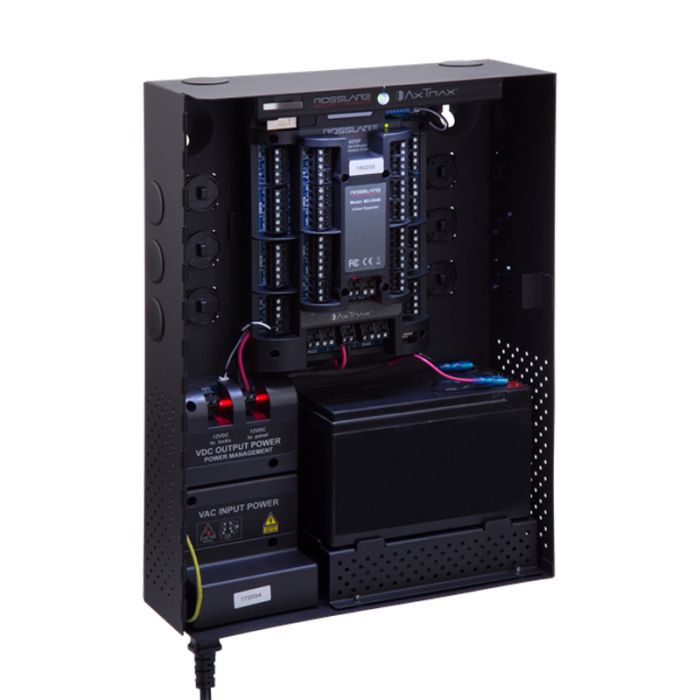

Rosslare 2-Door IP Expandable Controller BLACK

AC-225IP-B, and AC-225-B are professional grade access controllers that have advanced online and offline logic capabilities, using non-volatile memory in case of total power loss. The panels support 30,000 users, 128 access areas, 128 access groups, 128 time zones, 64 holidays, and 32 panel automation links. They feature 2 readers, 4 outputs, 4 inputs, buzzer indicator output, and LED indicators for TCP/IP, serial bus, output status. The panels feature a secondary RS-232 serial port enabling a PC connection via a standard serial COM port. The reader ports support industry standard Wiegand inputs from 26-Bit to 64- Bit and 8 different keypad formats. When connected to AxTraxNG™ Server software Microsoft ® Windows® 7/8/10 operating systems, IP networks of up to 1023 panels may be achieved with the AC225IP.

• Full online and offline operation
• Supports for 30,000 active credentials, 30,000 PIN codes, 128 access groups, 128 access areas, 128 time zones, 64 holidays and 32 NG Smart Links for automation
• 20,000 nonvolatile, FIFO, records the event log while offline
• Expandable with MD-IO84B I/O expansion for additional 8 inputs, 4 outputs OR the MD-D02B 2-Reader expansion for additional 2 readers with 4 inputs, 4 outputs
• Real-time clock with super-cap holds power and keeps RTC real-time clock for up to 2 weeks when total power loss (no batteries to replace)
• Supports wide range of Wiegand reader formats, PIN keypad formats, and logic options to support wide range of locks, deadbolts, electric strikes, maglocks, and sliding doors
