AJAFP2ACPW

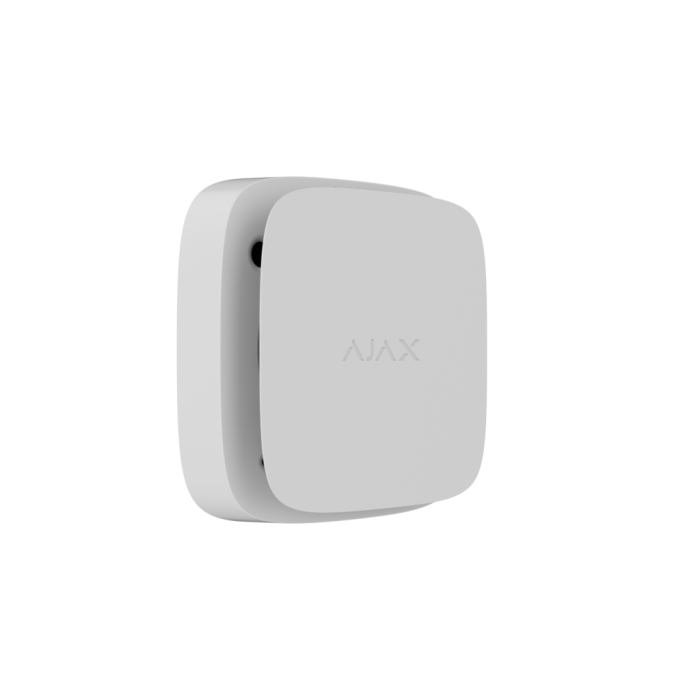

AJAFP2ACPW 82200 Ajax FireProtect 2 AC Heat Smoke Jeweller Fire Detector - White

The AJAFP2ACPW is the white Ajax FireProtect 2 AC Heat/Smoke Jeweller, a wireless mains-powered fire detector that combines smoke and heat detection in one device. It uses a dual-spectrum optical smoke sensor with HazeFlow 2 processing, a patented smoke chamber described as dustproof and insect-resistant, and external A1R-class thermistors that alarm when temperature rises by 10°C within a minute or exceeds 64°C.

In an Ajax system, the detector can notify fire alarms through a primary hub interconnection and a fallback detector-to-detector interconnection, with app reporting for the initiating detector location, alarm type and time. Regular system polling, automatic self-diagnosis, maintenance notifications, QR-code pairing and app-based configuration help support monitored operation and efficient installation.

Key Features

• Combines smoke and heat sensing for broader fire detection coverage in one Ajax detector.
• Helps distinguish smoke events from vapour and water steam using HazeFlow 2 processing.
• Maintains operation during power outages with 110-240 V mains power and a sealed backup battery.
• Coordinates alarms through hub-based primary and detector-to-detector fallback interconnections.
• Supports specification review with listed EN, BS, AS and BSI Kitemark smoke alarm references.
