ARM7022-W2(915)

DHI-ARM7022-W2(915) Wireless Dual-Channel Relay 100-240VAC-2CH

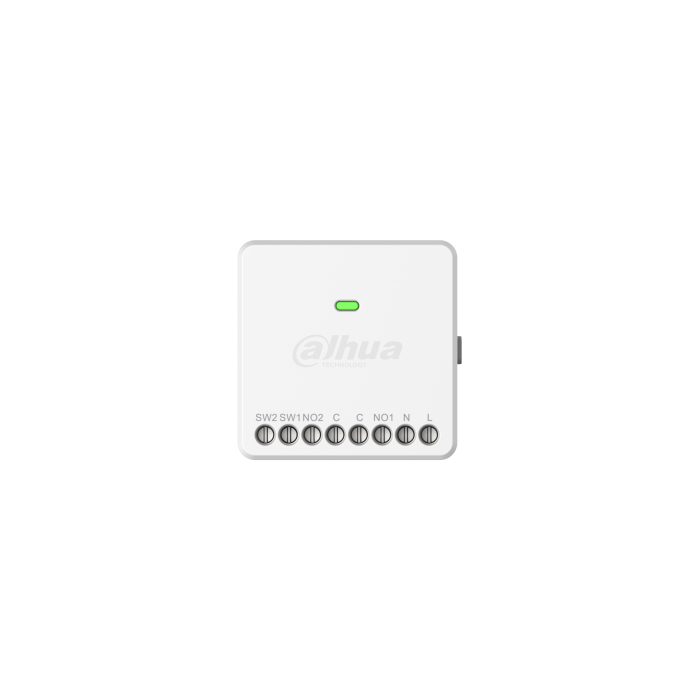

The DHI-ARM7022-W2(915) is a high-quality wireless dual-channel relay smart switch designed for remote control and energy monitoring of connected loads such as lighting circuits, roller shutters, blinds, and other appliances. Measuring 47 mm x 47 mm x 24 mm, it features a durable casing and dual relay outputs to ensure reliable switching, stable wireless communication, and dependable performance in everyday smart automation.

Ideal for smart home and light commercial automation, it supports local switch control and smartphone-based remote operation, power detection, and automated scenes for hands-free device management. With two-way frequency-hopping wireless communication, AES128 encryption, jamming detection, and CE compliance, it delivers secure, stable control, while cloud update with fail-safe recovery and OTA upgrading helps keep installations current and dependable.

Key Features

• Dual-channel switching with 2 switch inputs controlling 2 relay outputs for 100-240 VAC loads
• High-capacity relay outputs: 100-240 VAC/10 A (total 16 A) and 0-24 VDC +/-10 percent /10 A (total 16 A)
• Two-way frequency-hopping wireless with up to 1,200 m open-space range plus jamming detection
• AES128 encryption, CE certification, and cloud update with automatic restore plus OTA upgrading
• Compact 47 x 47 x 24 mm module with bracket/adhesive 86 and 120 junction box mounting options
