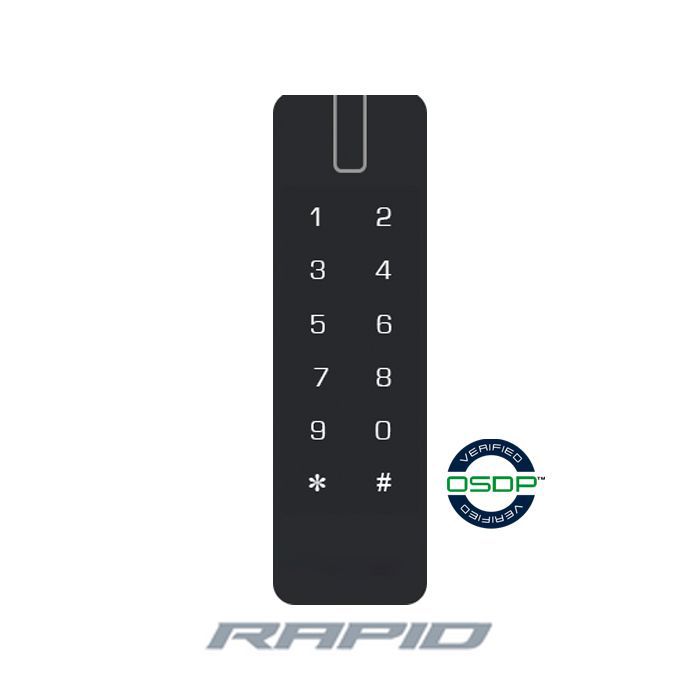

AST-RAPID-KEYPAD

Astuto RAPID Keypad Reader with NFC, BLE & OSDP

RAPID format is an Site Specific Astuto Encryption (Equivalent to HID GOLD Class)

• Astuto encrypted format
• Accepts Mobile Credentials
• Supports NFC & BLE
• Adjustable BLE distance (10 cm - 12 m)
• Wiegand/OSDP (SIA OSDP Verified)
• Simple and convenient installation
• IP65 ingress protection rating
• Built-in weigand transmission Keypad

The Astuto RAPID keypad reader accepts mobile and physical proximity credentials. When used in conjunction with the U-Prox Mobile ID App and Mobile credentials, it will allow any access control system to use smartphones as credentials.

MOBILE CREDENTIALS

Digital personal mobile credentials are processed and stored in the user’s smartphone using the Mobile ID application. They can be transferred over. NFC and/or BLE between the reader and the smartphone. via NFCfor Android only Read range 2-5 cm. Recommended for doublesided doors and turnstiles.

via BLE for Apple and Android Reader supports 3 operation modes:

• “Door-Proximity” – 10-20 cm, reader activates by built-in proximity sensor. Recommended for double-sided doors and turnstiles.
• “Door” - up to 60-70 cm.
• “Barrier/Gate” - adjustable range of interaction from 1 to 12 m.

Easy connection

Seamless and easy connection to existing and new access systems, due to the OSDP, Wiegand 26, 32, 34, 37, 40, 42, 56, 58, 64 bit interfaces, Wiegand with automatic selection and TouchMemory supports.

Mobile Apps

Free mobile application U-Prox Mobile ID receives, stores and transmits mobile credential BLE ID between the reader and the smartphone.

Warranty

Limited lifetime.
