B308
SKU
B308
The B308 Octo-output Module is suitable for applications requiring Form C outputs to operate auxiliary systems or to display fire system status at remote annunciators. The B308 can interface with building components such as HVAC, door lock releases, and stairwell pressurization for complete system control and monitoring.
Industrial, commercial, and institutional facilities are typical installations for the B308 module. The eight onboard outputs can be programmed to activate on system alarm, system trouble, individual zone or point faults, and through remote control by authorized users.

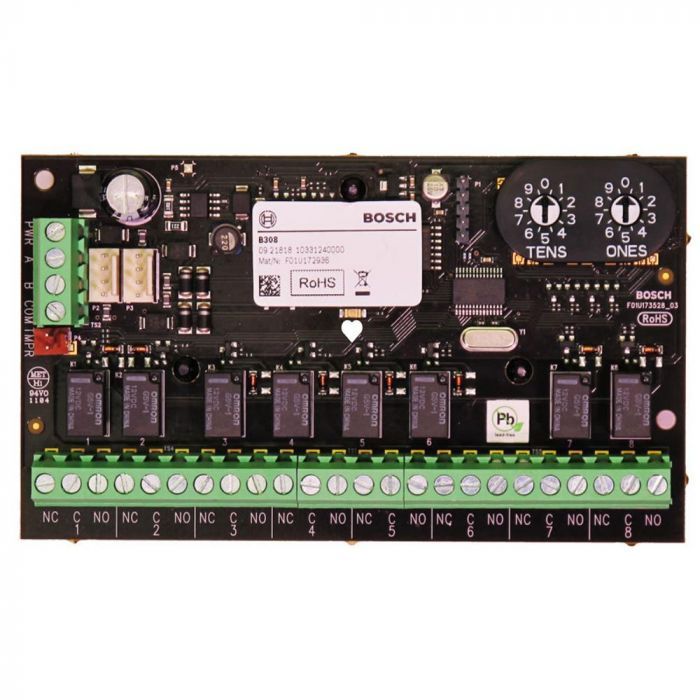

The B308 Octo-output Module provides eight programmable outputs. Each relay provides dry contact switching rated for 1.0 A at 5-24 VDC. The outputs are accessed through on-board screw terminal
connections. The B308 is compatible with the SDI2 bus. The onboard switches are used to specify module addresses. Control panel programming will determine output response to specific events.
Format | Label | Description | Type | Size | Download |
---|---|---|---|---|---|
Specsheet | B308 Data Sheet | 310.9 KB | Download |
