D805

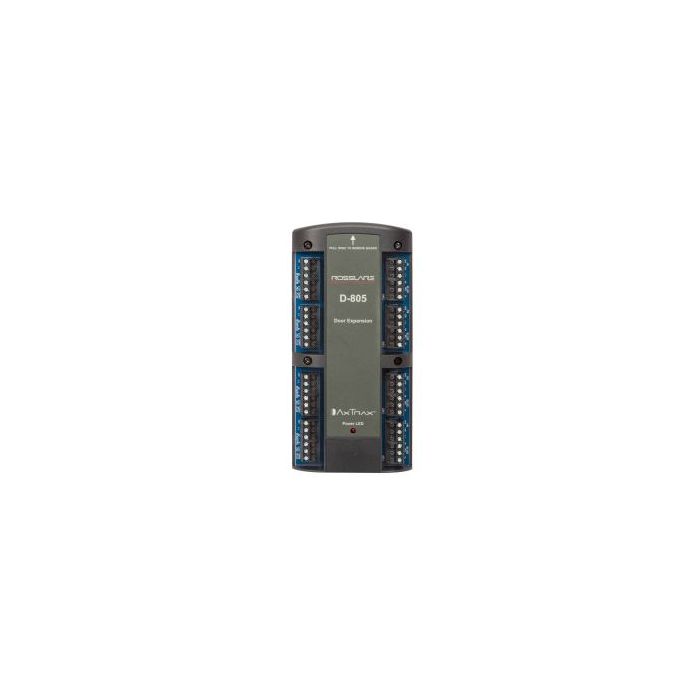

Rosslare 4 Door Expansion for AC825IP D805

Is one of the 4 expandable boards of the new series controlling the AC series.

Ideal for residential and commercial solutions. The expandable board increases the flexibility of the system of the access control giving it an increase of 4 lectors, 4 relate/ports, and 8 inputs supervised by the panel.

Principal Features

• Compatible with the AC825IPL panel
• One only expandable board can be connected to the board directly, and
  holds up to 16 expandable boards by the OSDP port
• Adds 4 lectors
• 4 Relate outputs and 8 outputs supervised by the panel
• Transmision formats of dara Wiegand, Clock, and Data
• LED source and relay status indicator
• Improved modular installation

  NOTE.- It is possible to connect one only board directly to the panel,
  if is desired to add one expandable board is necessary to add in the
  cabinet ME-1505 for each one of the pairs in expandable boards.
