DA1414

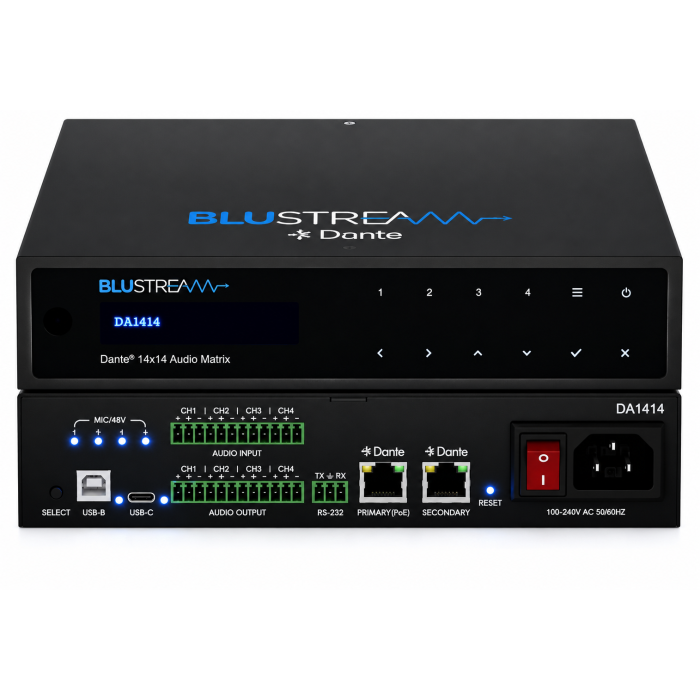

DA1414 14 x 14 Audio Matrix with Dante and USB - PoE+ 1U

The DA1414 is a PoE-powered 14 x 14 audio matrix designed to distribute multiple audio sources across multi-zone systems. It combines 8 Dante, 4 balanced/unbalanced analogue and 2 USB audio inputs with output to 8 Dante, 4 balanced/unbalanced analogue and 2 USB channels, while supporting independent mono routing, volume, balance and up to 8-band parametric equaliser control on input and output stages.

Built for commercial and residential audio installations, the DA1414 supports front panel, RS-232, TCP/IP and web GUI control, plus API switching for routing Dante channels through third-party control platforms. Selectable USB-C or USB Type-B audio, AES67 RTP audio transport, 48 V phantom power for microphone or line-level analogue connections, PoE+ power support and a 1U 19-inch rack mount design give integrators flexible options for clean system deployment.

Key Features

• Consolidates Dante, analogue and USB audio routing within one 14 x 14 matrix
• Helps tailor multi-zone systems with independent mono routing and channel-level control
• Supports refined audio tuning through per-input and per-output processing tools
• Enables Dante channel routing from third-party control platforms via API switching
• Fits neatly into installed AV racks with PoE+ power support and a compact 1U format
