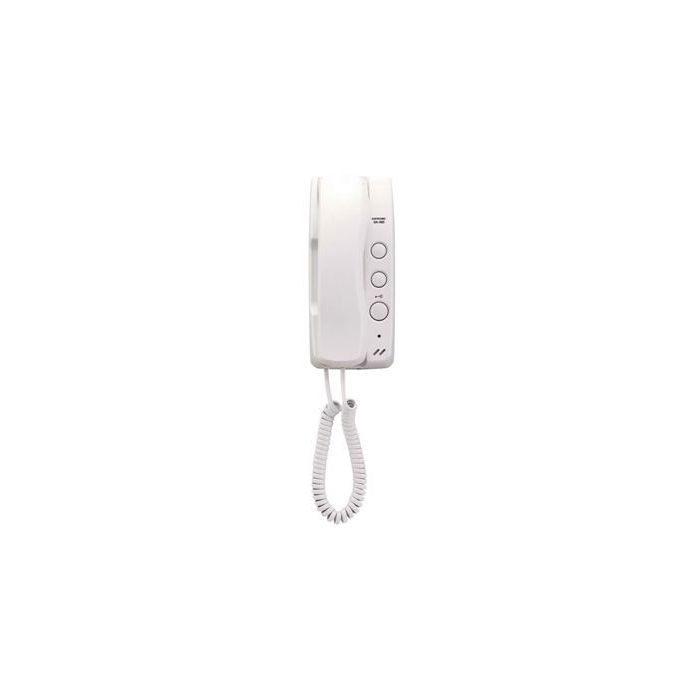

DA-1MD Aiphone DA Series Audio Wall Handset
The DA-1MD is an Aiphone audio wall handset for DA Series two-wire electric-lock door phone systems. It features a door-release button, call-tone sounder, call-tone off LED, call-tone volume control and an optional service button.
Designed for wall-mounted indoor installation, the handset is used with a DA door station and operates from an AC 15 V power supply provided by the system. Users can answer calls, communicate with visitors and operate the door-release function from the room station.
Key Features
- Wall-mounted handset for DA Series two-wire door phone systems.
- Door-release button provides convenient visitor entry control.
- Call-tone volume control and mute indicator support user-adjustable operation.
- Compatible with DA Series two-wire electric-lock door phone systems.
- Clearly labelled controls support straightforward daily operation.
- Catalogue Family:
- INTERCOM
- Model:
- DA-1MD
- Product Type:
- Intercom
- System:
- DA two-wire electric-lock door phone
- Power Source:
- AC 15 V supplied from power supply
- Ambient Temperature:
- 0 deg C to +40 deg C (+32& deg F to +104 deg F)
- Dimensions:
- 200 mm H x 89 mm W x 63 mm D
- Weight:
- Approx. 350 g
- Controls:
- Service button option, door-release button and call-tone volume control
- Indicators:
- Call-tone off LED
