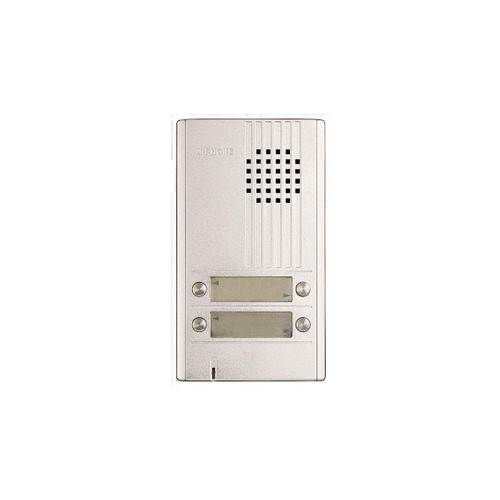

DA-4DS Aiphone DA Series 4-Call Surface Door Station - Silver
The DA-4DS is an Aiphone DA Series 4-call door station for two-wire electric-lock door phone installations. It is designed for use with DA-1MD apartment stations and a compatible PT-1211 power supply.
It supports residential entry applications requiring visitor call-in, room-station communication and optional door release. Its compact surface-mount design is suited to multi-residence entrance installations.
Key Features
- Four call buttons provide separate visitor call points from one door station.
- Designed for use with DA-1MD room stations in a DA Series system.
- Door-release terminals support compatible electric-lock equipment.
- Compact surface-mount design suits residential entrance installations.
- Supports connection of a call-extension sounder for an additional alert.
- Catalogue Family:
- INTERCOM
- Model:
- DA-4DS
- Product Type:
- Intercom
- System:
- DA two-wire electric-lock door phone
- Related Room Station:
- DA-1MD
- Power Source:
- AC 15 V supplied from power supply
- Ambient Temperature:
- -10 deg C to +60 deg C (+14 deg F to +140 deg F)
- Dimensions:
- 175 mm H x 100 mm W x 22 mm D
- Weight:
- Approx. 270 g
- Door Release Terminals:
- L, L for door release
- Room Station Terminals:
- D, E for DA-1MD
