ELV41006.1

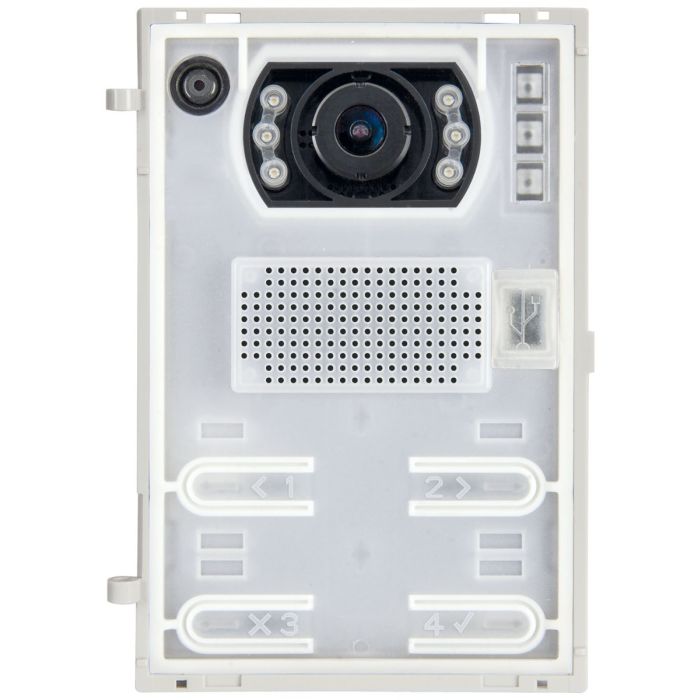

41006.1 Vimar Elvox IP Audio Video Module With Wide-Angle Camera, Teleloop And PoE - IP54
The 41006.1 Vimar Elvox IP audio video module is designed for Pixel Series modular entrance panels used in IP door entry systems. It combines a wide-angle camera, integrated teleloop function for hearing aid users, voice synthesis, white LED scene illumination with automatic brightness adjustment, and Power-over-Ethernet operation to deliver accessible and reliable visitor communication.
Compatible with Vimar Elvox 41000 Series auxiliary modules (excluding 41016), the module supports zoom and scan camera control from compatible indoor stations, programmable picture control modes, echo cancellation, automatic speaker gain control, twilight-controlled illumination and programmable inputs for functions such as lock release or door status monitoring. It also provides local configuration through the front call buttons and LEDs, making installation and commissioning more convenient for professional IP intercom deployments.
Key Features
- Designed for Vimar Elvox Pixel Series IP modular entrance panel systems.
- Combines wide-angle video, audio communication and teleloop accessibility in a single module.
- Supports zoom and scan camera control from compatible indoor stations.
- Automatically adjusts camera illumination and entrance panel backlighting to suit ambient lighting conditions.
- Includes voice synthesis, echo cancellation and automatic speaker gain control for improved communication quality.
- Supports expandable call capacity with compatible auxiliary button modules.
- Provides programmable inputs for lock release, door monitoring and other configurable system functions.
- Powered via Power-over-Ethernet for simplified network installation.
