ELV41008

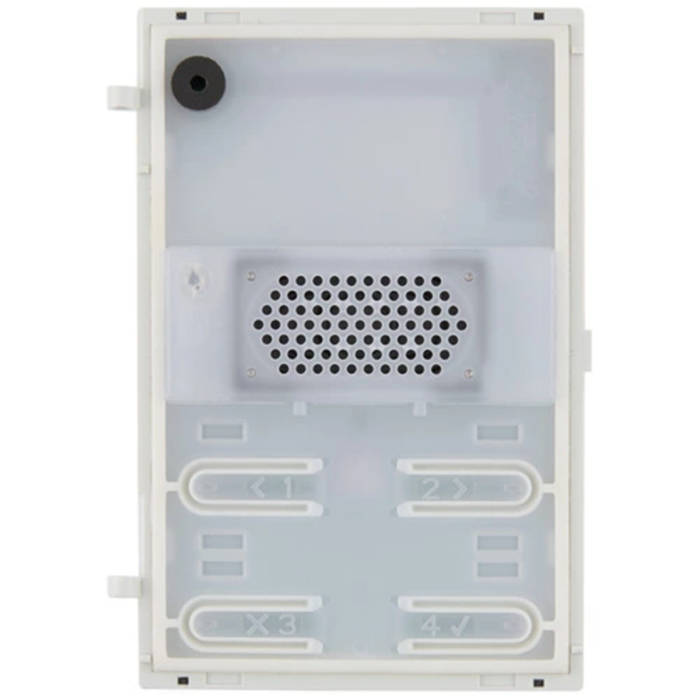

Elvox 41008 Due Fili Plus Audio Entrance Panel Unit 4 Call Buttons - External Camera Input
The 41008 is a high-quality Elvox Due Fili Plus electronic unit designed for Pixel series audio entrance panels, delivering clear visitor-to-tenant communication with advanced audio processing. Built for 2F/2F+ door entry systems, it features echo suppression, automatic sound balancing, and automatic microphone level control, plus 4 call buttons with white LED backlighting and dusk/dawn lighting control to ensure reliable operation and visibility in outdoor entry environments.
Ideal for multi-tenant residential and commercial entrances, it adds flexible access control integration with an external camera input, a direct electrical lock release output, and a SELV relay output configurable as NC or NO rated 48V 1A. With a call status indicator LED and a configurable input for an external push button for CA door opener or PA door open, it supports clean modular builds when completed with a compatible audio front cover and single, double or fixed button modules.
Key Features
- Due Fili Plus audio entrance electronic unit with echo suppression and automatic sound balancing for clearer speech
- Four call buttons and four-user support with white LED backlighting plus dusk dawn lighting control
- External camera input for flexible video integration in 2F/2F+ entrance panel configurations
- SELV relay output configurable NC or NO rated 48V 1A plus direct electrical lock release output
- Outdoor-ready bus system module with -25°C to +55°C operating range and compact 81.10 x 114.50 x 38.00mm form factor
| Format | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
|
|
Specsheet | ELV41008_ds_1 | 1 MB | Download |
