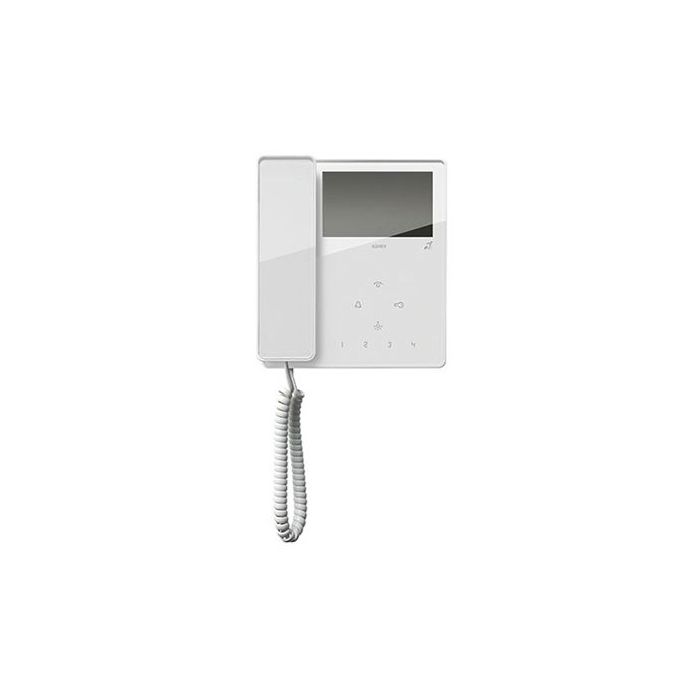

TAB ELVOX surface mounting video entryphone
Monitor made of thermoplastic material with handset and 4.3
LCD colour display. Equipped with keypad for the video door
entry functions: talk/listen, door lock release, self-start, auxiliary
services (stair lighting), ringtone muting and 4 programmable
additional buttons that can execute up to 4 auxiliary functions
or intercommunicating calls.
It is possible to control brightness, ringtone volume, ringtone
muting when User Away function is activated and ringtone
type selection. Facility of selecting different ringtones for calls
made from different points, e.g.: external entrance panel,
landing call, intercom call.
Signalling of Door/gate open and Unanswered calls (up to 4
calls with monitor in ringtone muted mode).
The monitor features a hearing aid function as standard

Main specifications
Power supply: Due Fili Plus Bus.
4.3 LCD display.
Monitor in ABS casing with gloss finish to front panel.
Soft touch capacitive keypad with backlit symbols (during
operation).
Electronic ringtone: with diversification between 10 different
tunes for entrance panel calls, intercom calls and landing calls.
Input for landing call.
Mini-USB connector for programming from PC.
Designed for surface mounting with back plate either directly to
the wall or to a recessed back box (can be fixed with masonry
plugs, or screwed to a 3-module rectangular back box or a
60 mm round back box).
Dimensions of monitor with handset hung up: 160x180x45 mm.
Technical data
Inputs
power supply from bus 28 Vdc nominal
current draw in stand-by 10 mA
max current draw in operation 180 mA
operating temperature 0 C to +40 C1714
