EMZ8-DM

Format	Label	Description	Type	Size	Download
	Manual	Z8_Z4_Z2_Single Mtd_Install	pdf	2.7 MB	Download
	Brochure	Padde / Lockwood Mag Lock Guide	pdf	1.3 MB	Download

Name

Email

Mobile Number

Message

Type the number:

Submit

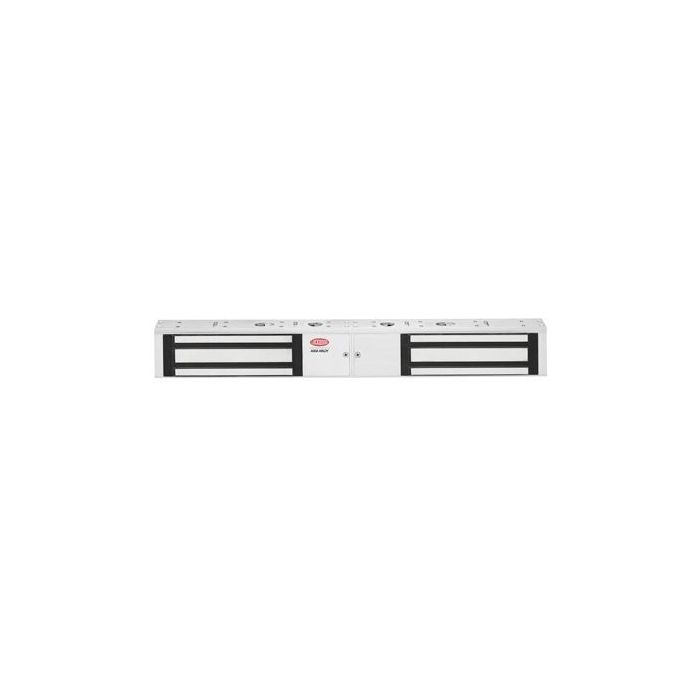

Lockwood Padde Series Double Series
Monitored Electromagnetic Locks,
operate with holding forces from
500kg up to 1160kg.
These can also be used for doors that
need to be monitored in terms of door
position and if the door is locked.
Covering a range of applications the
Z4 and Z8 Electromagnets are ideal
for applications from cupboard doors
through to high use commercial swing
doors.
With fixing options including wood,
aluminium and steel constructions,
as well as glass door applications, the
range caters to most electromagnetic
needs.
Key Features
Fail-safe: unlocks when power is
removed
Easy installation: suitable for both
new and retrofit usage
High holding force: refer to the
technical data overleaf
Self-alignment: armature plate
pivots to accommodate door drop
Silent operation: no humming or
buzzing
Dual voltage: site selectable 12 or 24
Vdc
Monitoring: hall-effect and reed
switch monitoring on all models
Instantaneous release: smart
electronics on the Z Series
Electromagnets eliminate residual
magnetism
5 Year Tricare Warranty
(Padde Series)
Applications
Aluminium doors
Double swing doors
Access control
Surface mount for inswing and
outswing doors
Monitoring
Hall / Bond Monitoring
This indicates that the lock is powered
and that the armature plate is in
position and magnetically bonded (it
monitors if the magnet is locked)
Reed Switch Monitoring
An integrated reed switch monitors
the door position separately (it
monitors the position of the door)1528
