EX07
SKU
EX07

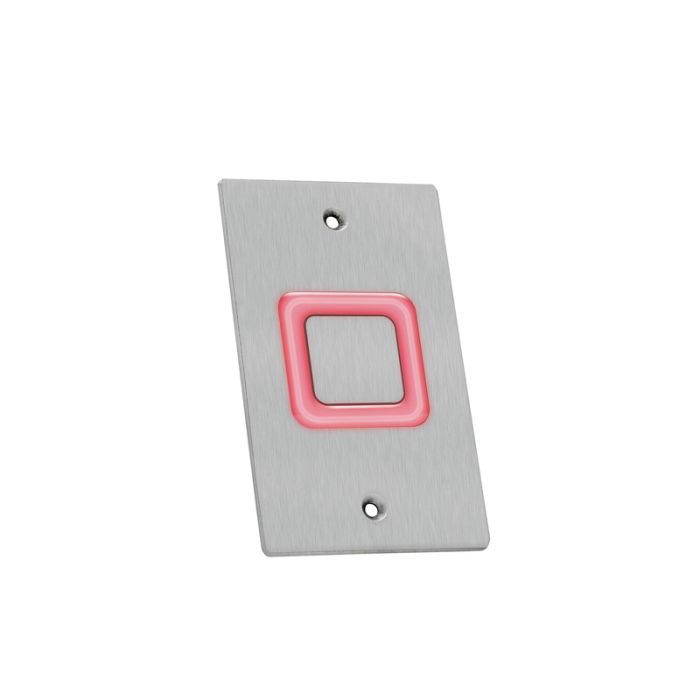

Rosslare’s EX-07 is a heavy duty, non-sparking, non-magnetic, corrosion resistant, illuminated,
anti-vandal, timed digital switch, designed for both indoor and outdoor use.
It features solid state Piezoelectric Switch Technology generating two isolated Form C output relays with no physical movement or moving parts.
Among its many features are: Jumper selectable illumination status with light dimming option,
buzzer mode, full dual-relay output, timed operation and relay toggle option.
The EX-07 mounts directly to a standard US size gang switchbox and is crafted to the highest manufacturing standards out of the finest materials under Rosslare’s ISO 9001:2008 Certified
Quality standards.
- Advanced soft touch piezoelectric switch
- New weatherproof design – water and dust proof, grease, oil and other chemical solvent repellent
- Vandal resistant
- Stainless steel mounting plate and tactile button with no moving parts
- Mounting Method Single Gang: Mounts directly to a US gang switchbox
- Backed by Rosslare’s International Guarantee and service with ISO9001 (Certified TÜV
- Rhineland) level business and manufacturing operations
- Non-sparking, non-magnetic, corrosion resistant
- Light square status indicator and accidental activation hindrance
- Adjustable Output and Led indication time of 1 to 60 seconds Output and indication toggle option
- Jumper selectable illumination status: red, green, or no illumination
- Built-in buzzer with alarm input and sound upon button press options
- Two separate full form-C relay outputs for separate application wiring: N.O. and N.C.
- Input for external lighting alerts for evacuation and other applications
Format | Label | Description | Type | Size | Download |
---|---|---|---|---|---|
Specsheet | EX07 Data sheet | 219.7 KB | Download |
- Stainless steel plate with Piezo Button
- Two colour LED indication DPDT Relay out
- Adjustable timer 1 to 60 sec
- 12 to 24V AC/DC
