EX40B-KIT
SKU
EX40B-KIT

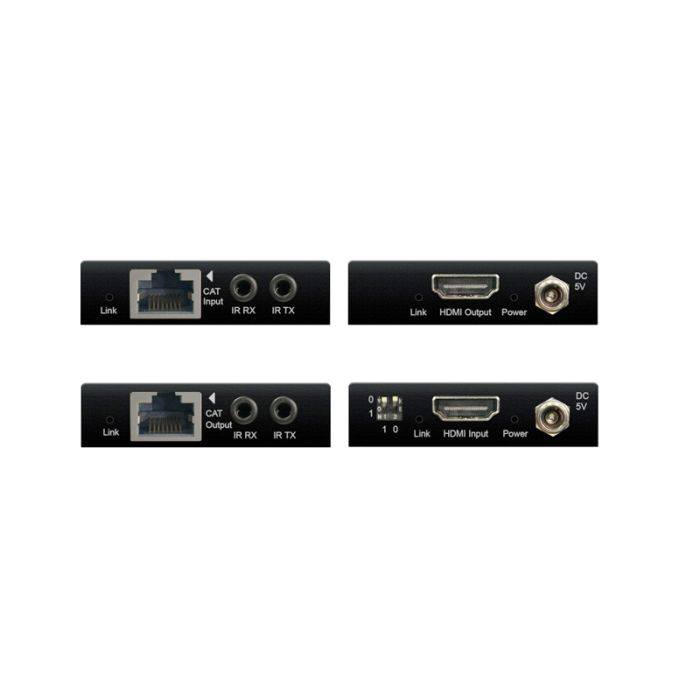

Blustream HDMI Extender Set for CAT6 -
Slim Line Extender Set - 40m @ 1080p
(1080i up to 50m) & Bi-directional IR.
| Format | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
|
Manual | EX40B+User+Manual_FINAL | 392.6 KB | Download |
- 1080p Up To 40 metres, Bi-Directional IR
- Supports 3D signal display
- Smart EDID managemen
- HDCP compliant
Blustream EX40B-KIT HDMI Extender set offers HDMI distribution over a single CAT cable at outstanding value. The product delivers HDMI & Bi-directional IR up to lengths of 40m @ 1080p and 50m @ 1080i.
Specifications
Video input
EX40B-TX: 1x HDMI Type A, 19-pin, female
EX40B-RX: 1x RJ45
Video output
EX40B-TX: 1x RJ45
EX40B-RX: 1x HDMI Type A, 19-pin, female
IR input 1x 3.5mm stereo jack
IR output 1x 3.5mm mono jack
Power Supply 5V/1A DC, screw type connector, one per balun required
Dimensions with connections (WxHxD): 58 x 15 x 96mm
Shipping Weight: 0.5kg
Operating Temperature: 32F to 104F (0C to 40C)
Storage Temperature : -4F to 140F (-20C to 60C)
Mounting kit included703
Specifications
Video input
EX40B-TX: 1x HDMI Type A, 19-pin, female
EX40B-RX: 1x RJ45
Video output
EX40B-TX: 1x RJ45
EX40B-RX: 1x HDMI Type A, 19-pin, female
IR input 1x 3.5mm stereo jack
IR output 1x 3.5mm mono jack
Power Supply 5V/1A DC, screw type connector, one per balun required
Dimensions with connections (WxHxD): 58 x 15 x 96mm
Shipping Weight: 0.5kg
Operating Temperature: 32F to 104F (0C to 40C)
Storage Temperature : -4F to 140F (-20C to 60C)
Mounting kit included703
