EX9000
SKU
EX9000

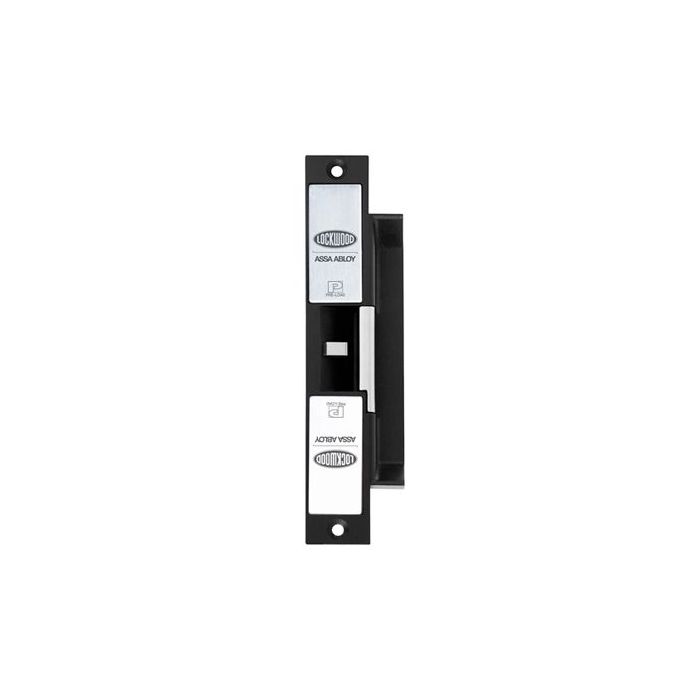

Padde Pre- Load Strike 10-30VDC PRE DRILLED
- All the same attributes as the ES9000
- Except its PRE-DRILLED for extension lips
- made to order 5-10work days
The ES9000 has been designed to suit the harshest commercial environments, and has the unique feature of the ability to operate with up to 25kg of pre-load pressure on the keeper. Pre-load is a common condition that is caused by pulling on a door before it unlocks, the weight of warped or drooping doors, seals on fire doors, or by differential air pressure created when heating and cooling systems are in use.
Standard features include multi voltage 10 - 30Vdc and field changeable settings from fail safe to fail secure.
Built to last, this is a premium locking solution that has been tested in excess of 2 million cycles and boasts unique features like no other available on the market today.
Key Features
Operates under pre load up to 25kg
Easy field selectable fail safe/fail secure
Multi voltage 10-30Vdc
1300kg holding force
2.5 million cycles endurance rating
Latch keeper is significantly quieter in operation
Weather resistant
Mounting tabs as standard
Non handed
TRICARE 5 Year Warranty
Weather Resistant (IP54)
Built in Protection Diode
Applications
High traffic areas
Doors subjected to side load (pre load)
Fire rated door sets
Open in/open out doors
Suitable for use with all access control systems
Standards and Compliance
S3 (Security) Australian Lock Standard (AS4145.2.1993)
D3 (Durability) Australian Lock Standard (AS4145.2.1993)
Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets)
CE Approved
C-Tick Certified
IP 54 Rating
SCEC Approved for Security Level 31598
Standard features include multi voltage 10 - 30Vdc and field changeable settings from fail safe to fail secure.
Built to last, this is a premium locking solution that has been tested in excess of 2 million cycles and boasts unique features like no other available on the market today.
Key Features
Operates under pre load up to 25kg
Easy field selectable fail safe/fail secure
Multi voltage 10-30Vdc
1300kg holding force
2.5 million cycles endurance rating
Latch keeper is significantly quieter in operation
Weather resistant
Mounting tabs as standard
Non handed
TRICARE 5 Year Warranty
Weather Resistant (IP54)
Built in Protection Diode
Applications
High traffic areas
Doors subjected to side load (pre load)
Fire rated door sets
Open in/open out doors
Suitable for use with all access control systems
Standards and Compliance
S3 (Security) Australian Lock Standard (AS4145.2.1993)
D3 (Durability) Australian Lock Standard (AS4145.2.1993)
Successfully fire rated up to 4hrs on fire door assemblies in accordance with AS1905.1. 2005 (Part 1: Fire resistant door sets)
CE Approved
C-Tick Certified
IP 54 Rating
SCEC Approved for Security Level 31598
