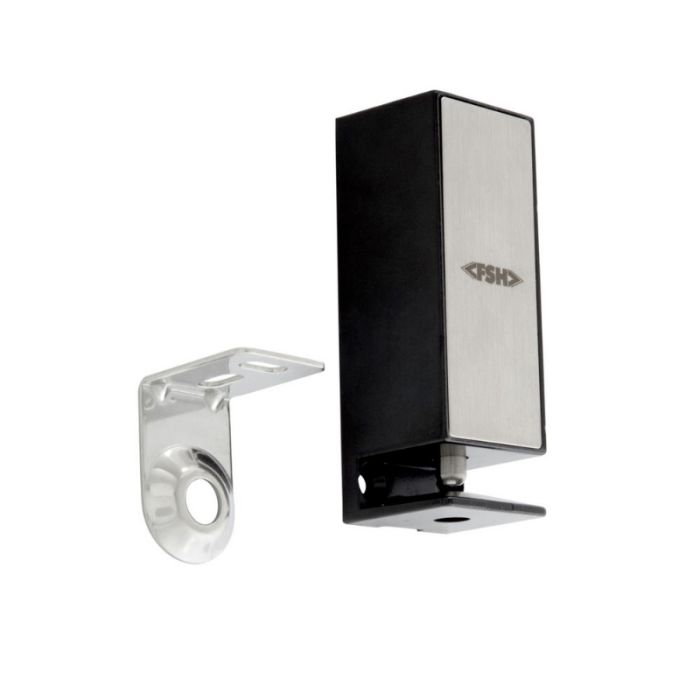

FCL10-10

FSH Electric Cabinet Lock

The FSH FCL10 is a compact surface mount cabinet lock designed specifically to fit cabinets and lockers with hinged, swing through or sliding doors.

They can be mounted either horizontally or vertically and are field interchangeable from Power To Open (Factory default) to Power To Lock.

The FCL10 and FCL10M are site configurable for either 12VDC or 24VDC, and the FCL10-10 is for 12 VDC operation only.

The FCL10M monitored cabinet lock provides full lock and door status monitoring with a Lock Status micro switch rated at 1A/30VDC, and a Door Status reed switch rated at max 10W (max switching contact 0.5).

• PTO / PTL interchangeable on site
• Dual voltage 12/24VDC
• 5 year warranty
• Applications: Sliding cabinet doors and swing cabinet doors
