FEM4300DM-HV

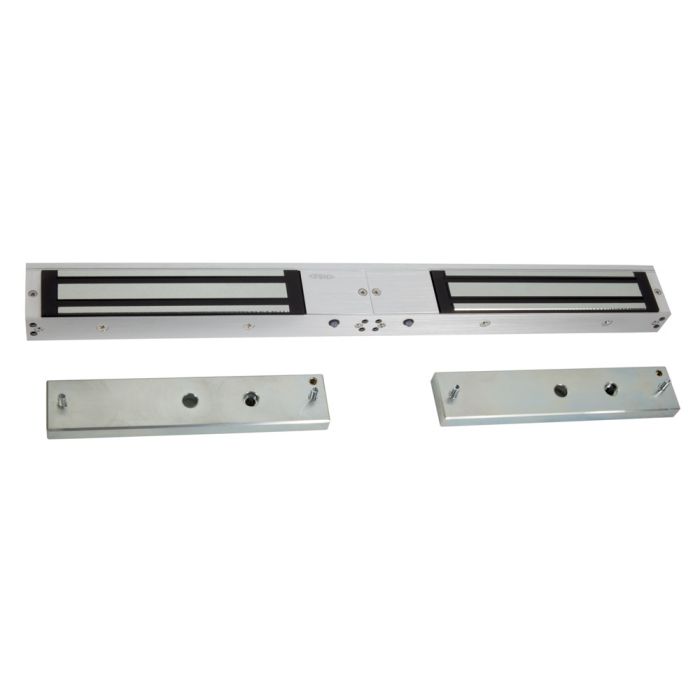

FSH FEM4300DM-HV 280KG Double Maglock Monitored 12-24VDC
The FEM4300DM-HV is a commercial-grade double electromagnetic door lock designed for indoor dry-use access control on double doors and wide openings where strong holding force and continuous status monitoring are required. Powered by selectable 12-24 VDC, it features integrated Lock Status Sensor (LSS) and Door Status Sensor (DSS) outputs plus a clear red/green LED indicator to deliver fast visual confirmation, reliable door security, and accurate monitoring feedback to your access control system.
Ideal for commercial entrances, secure corridors, and high-traffic facilities, it provides remote lock monitoring via relay contacts rated at 24 VDC 1.0 A maximum and door monitoring via reed switch contact, helping integrators build smarter alarming and compliance-ready door control. With onboard voltage selection shunts to set 12V or 24V operation, recommended use of filtered regulated DC power, and an optional anti-tamper mounting plate that enhances security and simplifies armature installation, it is a robust professional-grade maglock solution for modern electronic access control.
Key Features
- Double monitored electromagnetic lock for double doors delivering 280kg class holding performance per opening
- Selectable 12-24VDC operation with onboard jumper power selector to prevent misconfiguration and ensure optimal pull force
- Lock Status Sensor and Door Status Sensor for remote monitoring via relay and reed-switch contacts for alarms and access control panels
- Red green LED status indication for no power door open and door locked states to speed installation and troubleshooting
- Optional anti-tamper mounting plate provides added security and acts as a convenient armature mounting plate for cleaner installs
