FEM4300M-HV

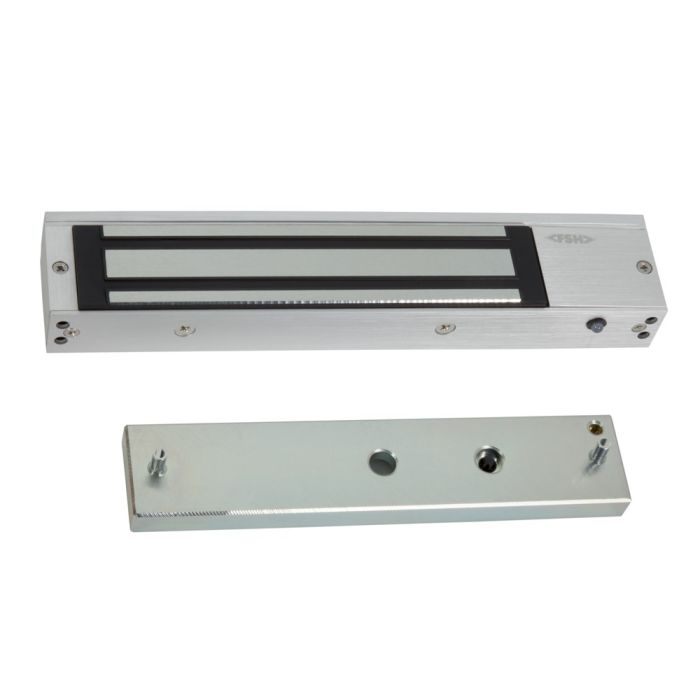

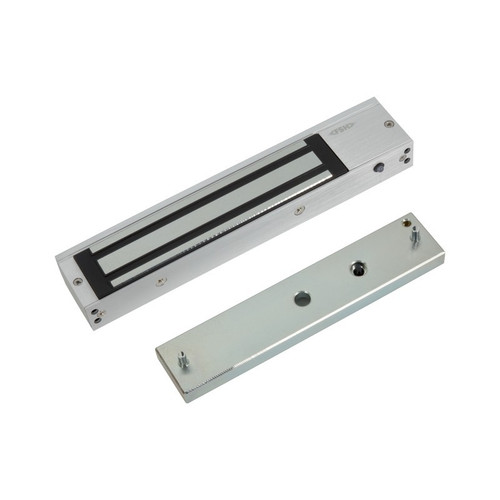

FSH FEM4300M-HV 280KG Monitored Maglock 12-24VDC
The FEM4300M-HV is a commercial-grade single electromagnetic door lock designed for indoor dry-use access control applications where reliable holding force and remote status monitoring are essential. Operating on selectable 12-24 VDC, it features a monitored lock body with Lock Status Sensor (LSS) and Door Status Sensor (DSS), plus a clear red/green LED indicator to ensure confident secure-door verification and fast troubleshooting for installers and security teams.
Ideal for commercial doors, controlled entry points, and high-traffic facilities, it provides relay-based lock monitoring (24 VDC 1.0 A max) and reed-switch door status feedback for seamless integration with access control panels and alarms, while supporting correct voltage selection via onboard shunt jumpers for dependable operation. Supplied with an armature plate component kit and compatible with an optional anti-tamper mounting plate to enhance door security and simplify armature installation, it is a robust maglock solution for professional electronic security deployments.
Key Features
- 280kg class monitored electromagnetic lock for secure indoor access control on single doors
- Selectable 12-24VDC input with jumper voltage selector for correct field configuration and optimal performance
- Lock Status Sensor and Door Status Sensor outputs for remote monitoring via relay and reed-switch contacts
- Red green LED status indication for power door open and door locked states to speed installation and diagnostics
- Optional anti-tamper mounting plate supports enhanced security and easier armature plate fitting
