FSS1-S
SKU
FSS1-S

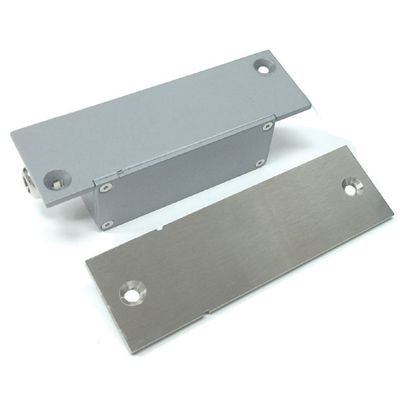

FSS1 SCEC endorsed high security monitoring sensor - Surface mount conduit version
Format | Label | Description | Type | Size | Download |
---|---|---|---|---|---|
Brochure | FSS1 Brochure | 620.6 KB | Download |
- SCEC Approved, Security Level 4 (SL4) rated
- Rated to IP67 | RCM Compliant
- Up to 8 magnets for unique magnetic footprint
- developed for high security applications
Surface mount with side conduit entry. The FSS1-S provides a conduit entry of 20mm (1/2 BSP pipe thread) to enable retro and new installation compatibility. The sensor housing is not handed and can be used in either left or right hand conduit entry. Slight conduit realignment on retrofit installations may be necessary.
Both surface mount models are supplied with a 1.5mm and a 3mm spacer to cater for
door / frame horizontal misalignment. Additional spacer kits are available.
DESIGN FEATURES
The products consist of two main components, the sensor on the door frame, and the magnetic array plate on the door. The product is designed for installation on hinged doors.
The FSS1 consists of 7 magnetic sensors that are used to detect the magnetic footprint from an array of magnets on the magnetic array plate. One sensor is used to detect the position of the magnetic array plate in relation to the FSS1, while the other 6 sensors are used to determine the polarity, size, strength and position of the magnets on the magnetic array plate in relation to the memorized recorded pattern.
The FSS1 is calibrated with the first closing of the door, storing the magnetic measurements into the devices memory. The FSS1 can be re-calibrated to allow for potential door drop or door warp.
Using 4 magnets in different positions, strength and polarity in the magnetic plate provides 1,820 permutations. In addition the magnetic plate position, orientation, door gap and surrounding material adds more door specific variables, greatly expanding on the base permutation. These door unique parameters and magnetic matrix are learnt by the sensor during the calibration procedure.
This far exceeds the Australian Government requirement of 8 permutations of magnets.
The FSS1 is not factory calibrated (mated) to its supplied magnetic array plate, and only learns the magnetic matrix when first powered and upon the first door closure.1937
Both surface mount models are supplied with a 1.5mm and a 3mm spacer to cater for
door / frame horizontal misalignment. Additional spacer kits are available.
DESIGN FEATURES
The products consist of two main components, the sensor on the door frame, and the magnetic array plate on the door. The product is designed for installation on hinged doors.
The FSS1 consists of 7 magnetic sensors that are used to detect the magnetic footprint from an array of magnets on the magnetic array plate. One sensor is used to detect the position of the magnetic array plate in relation to the FSS1, while the other 6 sensors are used to determine the polarity, size, strength and position of the magnets on the magnetic array plate in relation to the memorized recorded pattern.
The FSS1 is calibrated with the first closing of the door, storing the magnetic measurements into the devices memory. The FSS1 can be re-calibrated to allow for potential door drop or door warp.
Using 4 magnets in different positions, strength and polarity in the magnetic plate provides 1,820 permutations. In addition the magnetic plate position, orientation, door gap and surrounding material adds more door specific variables, greatly expanding on the base permutation. These door unique parameters and magnetic matrix are learnt by the sensor during the calibration procedure.
This far exceeds the Australian Government requirement of 8 permutations of magnets.
The FSS1 is not factory calibrated (mated) to its supplied magnetic array plate, and only learns the magnetic matrix when first powered and upon the first door closure.1937
CUSTOMERS ALSO BOUGHT
D110GLASS
D110 Series Single Replac
D110 Series Single Replac
WG2200SGEDR
KAC Green, Double Pole Ch
KAC Green, Double Pole Ch
WEB200C
Dual Press Panic Button,
Dual Press Panic Button,
AI673
Optical and Accoustical R
Optical and Accoustical R
DD669AM
Aritech DD669AM 20 mtr di
Aritech DD669AM 20 mtr di
DS720I
Bosch Tri Tech Long range
Bosch Tri Tech Long range
ISC-PDL1-W18G
Professional Series TriTe
Professional Series TriTe
VE1120AM
VE1120AM Aritech Sensor P
VE1120AM Aritech Sensor P
1078C-N
Sentrol 3/4" or 19mm Flus
Sentrol 3/4" or 19mm Flus
3572M0ELM0SC
Lockwood Key Override/ Hu
Lockwood Key Override/ Hu

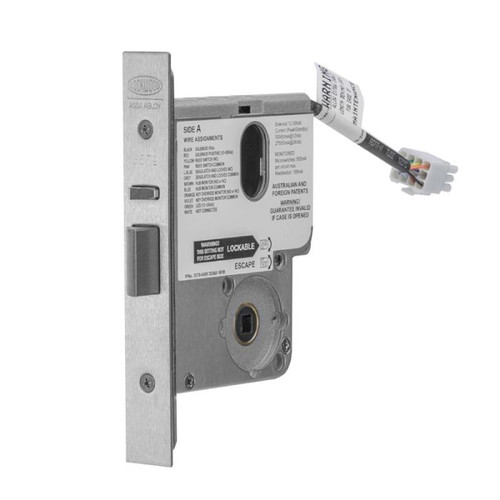

3579ELM0SC
Lockwood Fully Mon, No Cy
Lockwood Fully Mon, No Cy

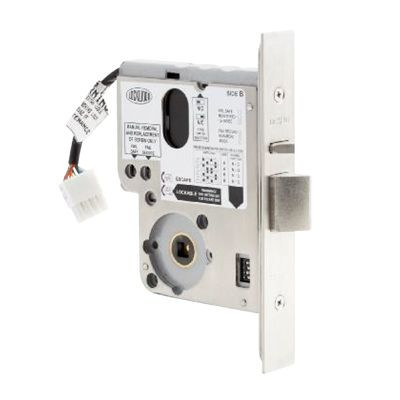

3579HSELM0SC
