H8184A

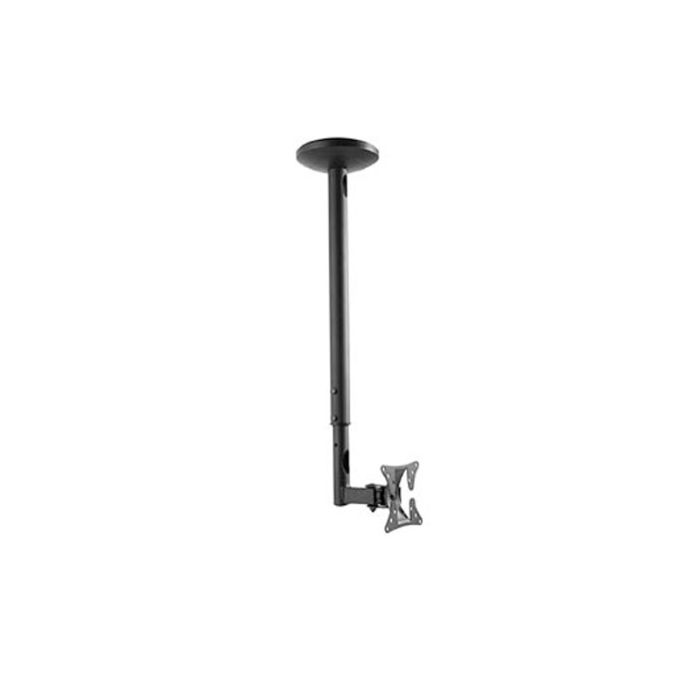

Flat Screen Ceiling Bracket 10"" to 37" - black

This 13-27" LCD Black Ceiling Bracket is ideal to mount TV screens and other screens from the ceiling. In particular the bracket is ideal for installations where wall mounting is not possible. Mounting height from ceiling can be varied from 600mm to 1000mm in 100mm steps. Cables can be run inside the bracket pole for a neat installation. Well suited for waiting rooms, bars, restaurants, hotels, information areas etc. Provides 180° of horizontal and vertical adjustment. Suits VESA sizes 75x75 and 100x100.


Features

  • Free-Tilting Design: for multiple monitor viewing angles
  • Swivelling Arm(s): offer(s) maximum viewing flexibility (makes every seat the best seat)
  • Height adjustable TV mount
  • Decorative covers for a more elegant look
  • Cable Management: keeps everything organised
  • Material: Steel
  • Surface Finish: Powder Coating
  • Colour: Black
  • Dimensions: 138x160x915mm (5.4"x6.3"x36")
  • Fit Screen Size: 13"-27"
  • Fit Curved TV: NO
  • Weight Capacity: 30kg
  • Mounting Hole Pattern: Standard VESA
  • VESA Compatible: 75x75,100x100
  • Max. VESA: 100x100
  • Panel Type: Fixed Panel
  • Tilt Range: +20°~-20°
  • Swivel Range: +90°~-90°
  • Profile: 608-858MM (23.9"-33.8")
  • Installation: Ceiling
  • Wall Plate Type: Fixed Wall Plate
  • Cable Management: Yes
  • By Function: Tilting
  • Spirit Level Mount: No



Format Label Description Type Size Download
pdf Manual H8184A Manual pdf 4.6 MB Download
