H8185
SKU
H8185

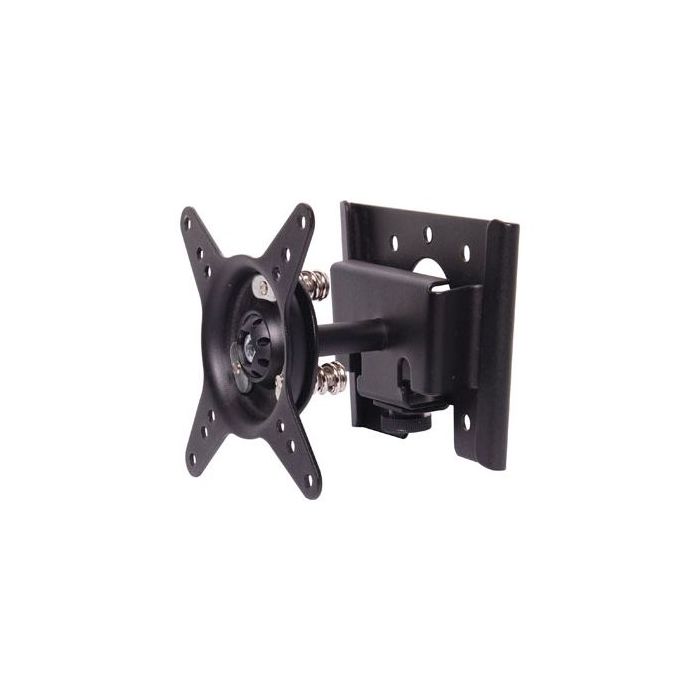

Wall Bracket LCD Black With Balljoint 10" to 24"
Excellent for restaurants, bars, hotels etc. where a compact LCD mount is required for touchscreens, registers etc. Also ideal for domestic installs. The clever two piece construction makes installation incredibly easy. Balljoint design permits 30° adjustment in all directions. Mounting hole centres at 60, 75 and 100mm square (suits VESA standard MIS-D 60, 75 & 100).
- Mounts To: Wall
- Screen Size: 10 to 24"
- Max VESA Dimensions: 100 x 100mm
- Max Weight: 12kg
- Horizontal Adjustment: 30 deg.
- Vertical Tilt Adjustment: 30 deg.
- Depth From Mounting Surface: 70mm
- Bracket Dimensions: 100H x 140Wmm
Format | Label | Description | Type | Size | Download |
---|---|---|---|---|---|
Brochure | Altronics H8185 Brochure | 131.3 KB | Download |
