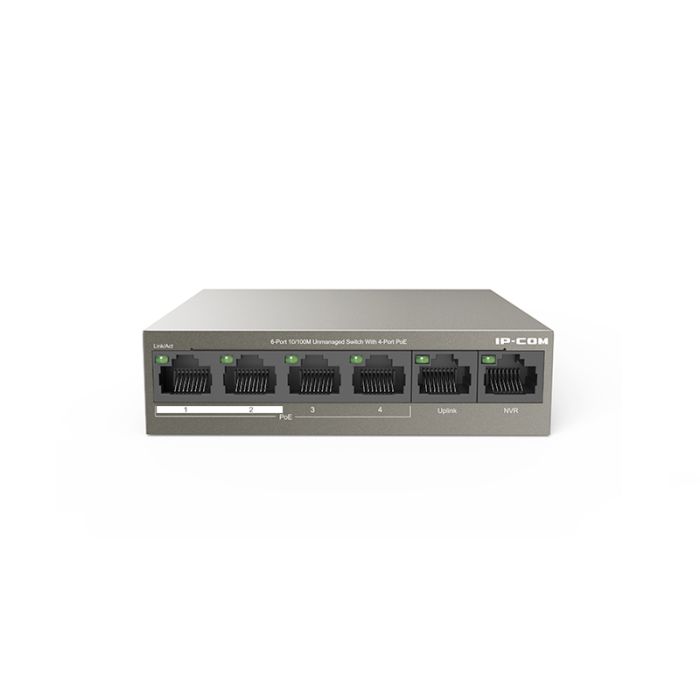

ICMF1106P-4-63W

F1106P-4-63W 6-Port 10/100M Unmanaged Switch With 4-Port PoE

• Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3x and IEEE802.3af/at standards
• 4*10/100 Mbps Base-TX RJ45 ports for data transmission and power supply
• 2*10/100 Mbps Base-TX RJ45 ports for data transmission
• 1 K MAC address table and MAC address auto-learning
• IEEE 802.3x-compliant full-duplex flow control and half-duplex backpressure flow control
• 1.2 Gbps backplane bandwidth
• Maximum power consumption of a single port:30W
• Maximum power consumption of the switch: 58W
• Supports extend mode and QoS function
• Supports desktop and wall-mounting, plug and play

F1106P-4-63W is an unmanaged PoE switch with 2 uplink ports, independently designed by IP-COM. Compliant with IEEE 802.3at/af standards, it can identify PoE-powered devices intelligently. The switch supplies a maximum PoE power output of 63 W, and 30 W for a single port. Featured with extend mode and QoS function, F1106P-4-63W is a ideal choice for SMBs, supermarkets and restaurants with small-sized video surveillance requirement.

The switch offers various safety and protection types, including 6 kV lightning protection, PSE short-circuit protection, PoE overload protection, surge current protection etc.

With two 10/100 Mbps uplink ports, the switch can meet the current demand for uplink bandwidth with NVR and router connection.

The switch features 4 IEEE 802.3at/af-compliant RJ45 ports. The entire switch offers a maximum PoE power output of 58 W, and 30 W for a single port, to supply power to and data transmission with IP cameras.

It supports extend mode. The hardware DIP mode switch makes long distance transmission effortless.
