ICMG1120P-16-250W

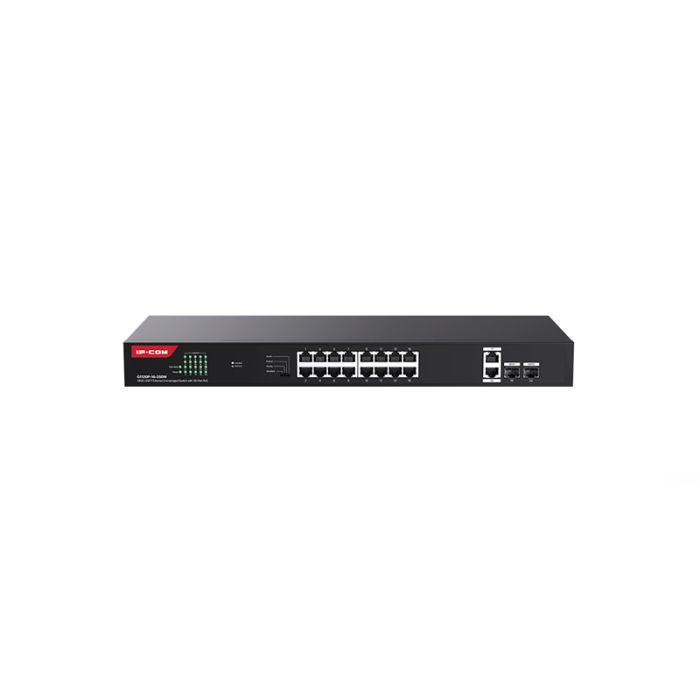

G1120P-16-250W  18GE+2SFP Ethernet Unmanaged Switch With 16-Port PoE

• Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab, IEEE802.3z， IEEE802.3x, IEEE802.3af/at
• 16* 10/100/1000 Base-T Ethernet ports (Data/Power)
• 2 * 10/100/1000 Base-T Ethernet ports (Data)
• 2 * 100/1000 Base-X SFP optical ports
• 8K MAC address and MAC address automatic learning
• IEEE 802.3x full-duplex flow control and half-duplex backpressure flow control
• 40 Gbps non-blocking wire-speed forwarding backplane bandwidth
• The maximum output power of the PoE port is 30 W. The maximum output power of the switch PoE port is 230W.
• 4 Mb large buffer design
• Standard 1U height, rack mounted switch

G1120P-16-250W is a gigabit Unmanaged Ethernet PoE switch designed by IP-COM. The switch provides 16 gigabit PoE ports, 2 uplink gigabit RJ45 ports and 2 SFP ports. It supports the IEEE 802.3af/at standard and can automatically detect PDs and supply power. The maximum output power of a single port is 30W, and the power of the whole switch is 250W. It supports rack mounting, one-toggle settings, plug and play, and simple networking. It is an ideal choice for SMBs, hotels, schools, and parks with video surveillance and wireless networking requirements.

Support four modes of Standard, Priority, Extend and VLAN.

With standard 19-inch metal body design, support rack and wall mounting.

It provides 16 gigabit PoE ports that comply with IEEE802.3af/at standards, the power of the whole switch is 250W, and the maximum output power of a single port is 30W, which can provide stable power supply and data transmission for high-definition PoE cameras and APs.

There are two independent uplink RJ45&SFP ports, which meet the requirements of both security and network scenarios.
