ADI – Automatic Door & Gate Interface

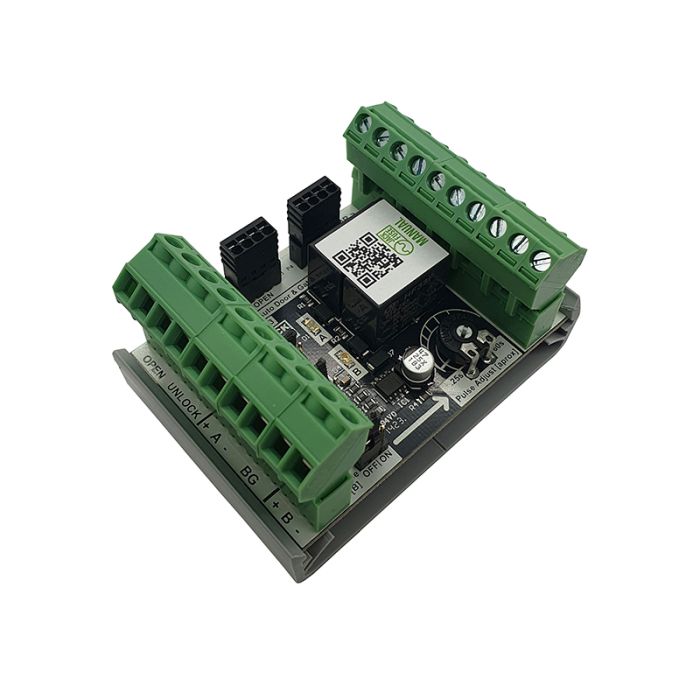

The ADI is a versatile interface module that connects access control and fire systems to automatic doors/gates.
Allow one ADI per automatic door or gate to reduce installation times and ensure all interface options are covered.
Mounted in the field, the ADI allows automatic doors/gates to be connected to access control panels in the same manner as an electronic lock; this simplifies panel wiring. The module also provides control status indicators and a clear division between trades which reduces confusion during installation and fault finding.
This new version of the ADI features an output pulse timer that helps reduce cabling/control output requirements and adds a useful sequence/timer mode.
APPLICATIONS
- Interfacing of electronic access control systems to
- Automatic sliding doors
- Motorised gates
- Speed gates (races)
- Powered swing doors
- Boom gates
- Timed sequencing of access control events
- Controlling automatic door day/open modes from one contact
- Connecting fire and break glass signals to automatic doors
FEATURES
- Two interface relays with control status LED indicators
- Onboard EOL resistor sockets for 2 x door input supervision
- Built in pulse timer - 250ms to 60s
- 45° pluggable terminals
- Break glass input
- Clear division between trades (EACS & Door contractors)
- Multiple operation modes
- Quick SnapTrack™ mounting
MODES
-
Traditional access control
-
Access control plus fire and break glass interface
-
Duplex mode (control door day and open modes via one contact/cable)
-
Timer/Sequence
-
Bi-directional access control (speed gates and/or entry/exit gates)
