KTP03W

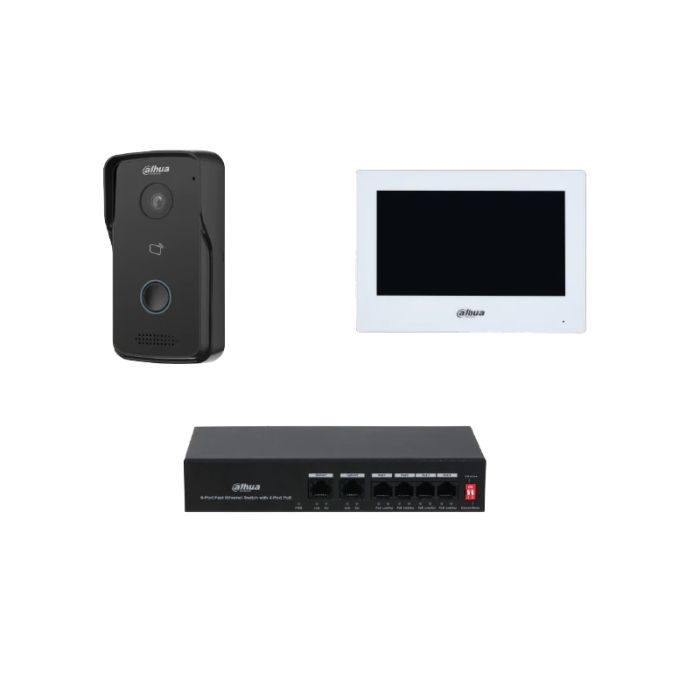

Dahua IP Indoor Monitor & Villa Station Kit (white monitor)

IP Indoor Monitor

• 7" TFT capacitive touch screen, 1024 x 600
• 6-channel alarm input and 1-channel alarm output
• standard PoE
• Door station and IPC monitor.
• H.265 and H.264 video decoding
• High performance & cost-effective

Villa Station

• High definition camera; WDR
• Operating temperature –30 °C to +60 °C
• IP65
• auto IR illumination and D/N
• Card/app remote/indoor monitor (VTH) unlock
• 2-channel voice call and supports calls between door stations and app
• 10,000 cards
• Tamper alarm
• Supports standard PoE power supply
• Control two locks
• Quick configuration without computers

Switch

• 4 PoE ports with 10/100 Mbps Base-TX
• 2 uplink ports with 10/100Mbps Base-TX
• Supports 250 m long distance PoE transmission
