ME1505

Rosslare Metal Case for AC825IP Expansion Boards

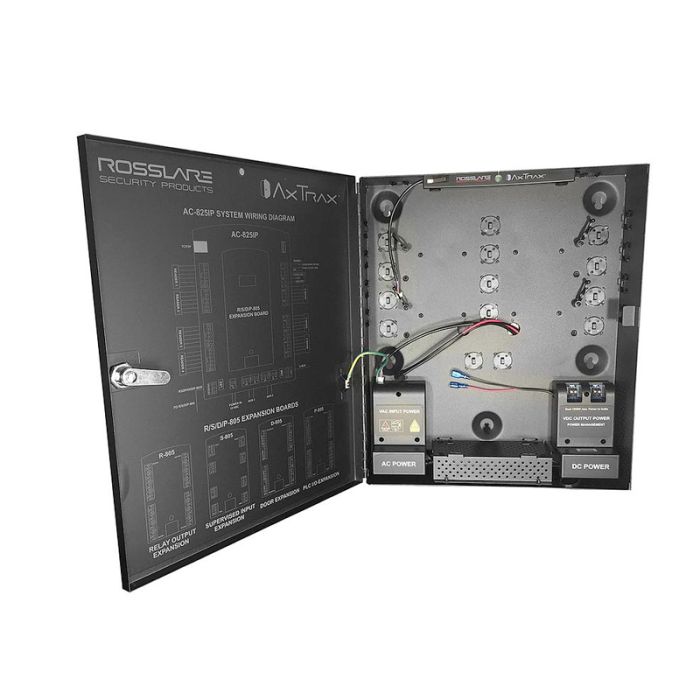

The ME-1515 is a lockable metal enclosure that houses the AC-825IP access control series and can be used to house one AC-825IP unit or two x-805 series expansions boards. The ME-1515 enclosure has a Universal Power Socket (UPS) with a C14 standard plug for the VAC switching power supply and VDC power management board with charger for a 12 V / 7 Ah lead acid battery and output power supply. The unit has audio speaker for chime, bell, and siren as well as a LED illumination bar that is connected to the controller boards and lights when the enclosure door is open. The illumination bar includes a tamper switch and a green power status LED at the front of the enclosure.

• Global input voltage – 100 to 240 VAC, 1.6 A, 50/60Hz auto select.
• Power module delivers isolated 13.8 VDC power @ 2 Amp output channels with PTC resettable fuse and LED indications.
• Built-in power event generation to let the control panels receive power supply and UPS events.
• Built-in Rosslare LightBar™ for lighting the way during maintenance and installation.
• Full system hinge and key lock unit (including 2 keys), thick high-quality oven baked black matte coating.
• Silk screen of all the connections on inside of door.
• Rosslare PowerLock™ C13 socket – power cable can be secured using a locking mechanism and cannot be pulled out of the socket. Can be supplied with various C14 power plugs per country requirements.
• Supplied with removable terminal blocks and special key for ease of installation.
