MS-100E

Takex Outdoor/Indoor PIR Selectable Pattern

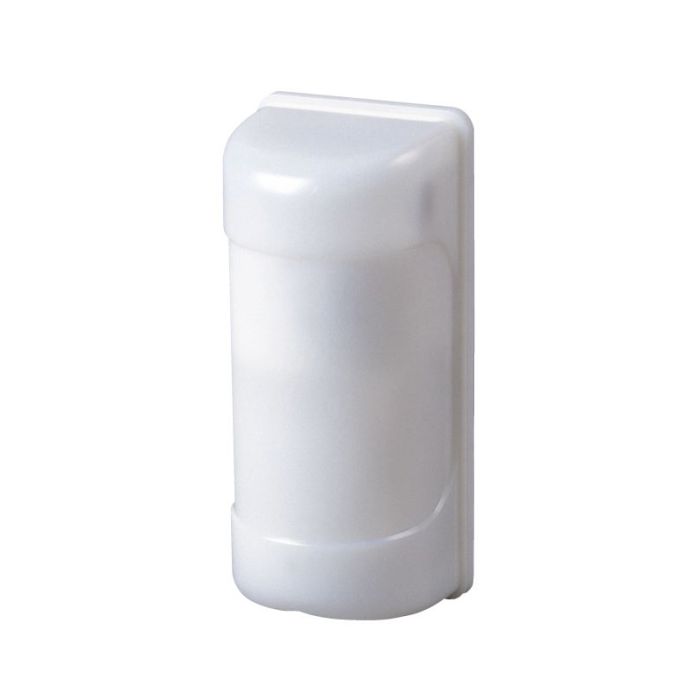

Designed for indoor and outdoor use, the MS-100E offers the choice of Wide Angle, Horizontal Curtain, Vertical Curtain and Long Range detection up to 20m from within a single discreet housing.

180° Rotatable optics allow the unit to be installed in almost any position; mount vertically for standard detection or horizontally as a door sensor… the choice is yours.

SPECIFICATIONS

• Detection system Passive infrared Coverage Vertical Installation
• Wide Angle [ Max. 33'(10m) ] (5 pairs)
• Curtain [ Max. 33'(10m) ] (5 pairs)
• Long Range [ Max. 66'(20m) ] (1 pair) Horizontal Installation
• Vertical Curtain [ Max. 10'(3m) ] (5 pairs)
• Supply voltage 10.5VDC to 28VDC (Non polarity)
• Current consumption 30mA or less
• Alarm output Dry contact relay output Form N.C./N.O. selectable
• Contact capacity; 30V (AC･DC), 0.5A MAX. (Resistance load)
• Contact operation; Detection time + delay time (Approx. 2 sec.)
• Tamper output Dry contact relay output N.C.
• Contact capacity; 30V (AC･DC), 2A MAX. (Resistance load)
• LED indicator Light at alarm
• Sensitivity adjustment Approx. 30% (L)～Approx. 170% (H) (100% set at factory)
• Mounting position Vertical Installation
• Indoor / outdoor (pole/wall, height 0.8-1.5m) Horizontal Installation
• Indoor / (wall / ceiling, height 3m Max)
• Wiring Terminals Weight 7.7 oz (220g)
• Appearance Cover: PE resin (white)
• Body: AES resin (white)

ENVIRONMENTAL SPECIFICATION

• Ambient temperature -4°F to +122°F (-20°C to +50°C)
