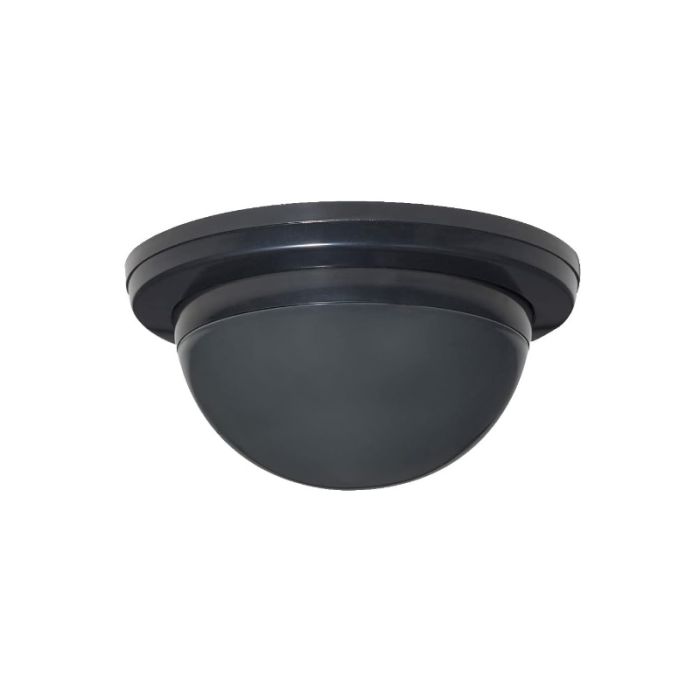

PA6614BL

Twin Mirror Passive Infrared Sensor in Black (Wide Angle Protection 14M)

Equipped with 2nd generation fuzzy processing. Uses a second generation fuzzy processing (environmentally compatible algorimum).

Unlike simple 2 signal and+ count processing, it is more accurate to identify human body and small animals, reducing malfunction. In addition, it is easy to detect and reduces falling, even in the event of low temperature differences, such as in summer. Compatible with a wide range of installation environments (mounting height, warning distance). In the standard mode, it supports a 16.4 ft (5 m) mounting height, and can alert up to 39.4 ft (14 m) at a height of 3.5 m or less. Equipped with temperature compensation function, the sensor selects the best signal processing according to the ambient temperature, so it always maintains stable detection performance. Designed to be environmentally friendly and eco-friendly; Low current consumption and extended operating voltage range; Power consumption: less than 8 mA; Operating voltage range: DC 7 - 30V; RoHS compliant; Improved lightning surge performance; Anti-yellowing; Black specifications [PA-6614(BL) only); New black housing color lineup. The sensor will not stand out even when mounted on dark ceiling surfaces such as temples and boutiques. We can offer new suggestions for customers who are particular about design.
