PCK43304W
SKU
PCK43304W

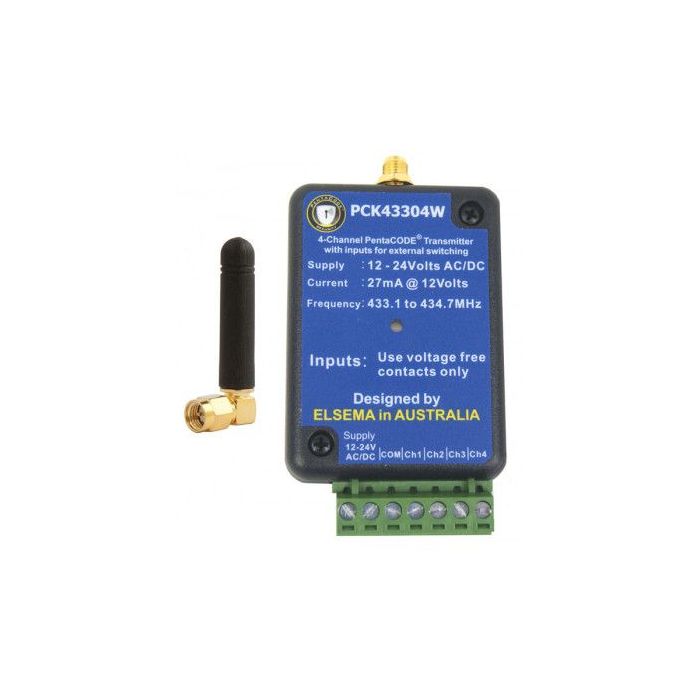

This easy-to-install transmitter combines 4 inputs, long range, frequency hopping and different transmission modes into a single small device. This transmitter is a fixed high power transmitter compatible with the Penta (PCR series) receivers. With the frequency hopping, the transmitter allows multiple systems to be used in one area with no interference. The transmitter modes are user selectable and adjustable timing is set with an on board trimpot. LED indicates an input is activated. Installation is easy with pluggable terminal blocks for the supply and inputs. The transmitter comes with a short range micro antenna which can be replaced with an Elsema ANT433S antenna to get an operating range of 500 metres.
Features
- Four external inputs (voltage free)
- Compatible with all PCR Penta series receivers
- 12 to 24 Volts AC/DC supply or 12 Volt battery
- Frequency hopping between 433.100 to 434.700 MHz
- Easy coding with 12-way dipswitch or encrypted coding
Format | Label | Description | Type | Size | Download |
---|---|---|---|---|---|
Manual | pck43304 Data Sheet | 491.7 KB | Download | ||
Brochure | PentaCode Brochure | 2.9 MB | Download | ||
Manual | PentaCode Programming | 282.5 KB | Download | ||
Manual | PCK Manual | 856.9 KB | Download |
- Dual Coding System, dip switch and encrypted code
- Transmission on 5 different frequencies
- Uses frequency hopping spread spectrum (FHSS)
- AS/NZS 4268, CE and FCC certified
This easy-to-install transmitter combines 4 inputs, long range, frequency hopping and different transmission
modes into a single small device. This transmitter is a fixed high power transmitter compatible with the Penta
(PCR series) receivers.
With the frequency hopping, the transmitter allows multiple systems to be used in one area with no interference.
The transmitter modes are user selectable and adjustable timing is set with an on board trimpot. LED indicates
an input is activated.
Installation is easy with pluggable terminal blocks for the supply and inputs. The transmitter comes with a short
range micro antenna which can be replaced with an Elsema ANT433S antenna to get an operating range of 500
metres.
