10 Individual fused and monitored outputs power distribution board.

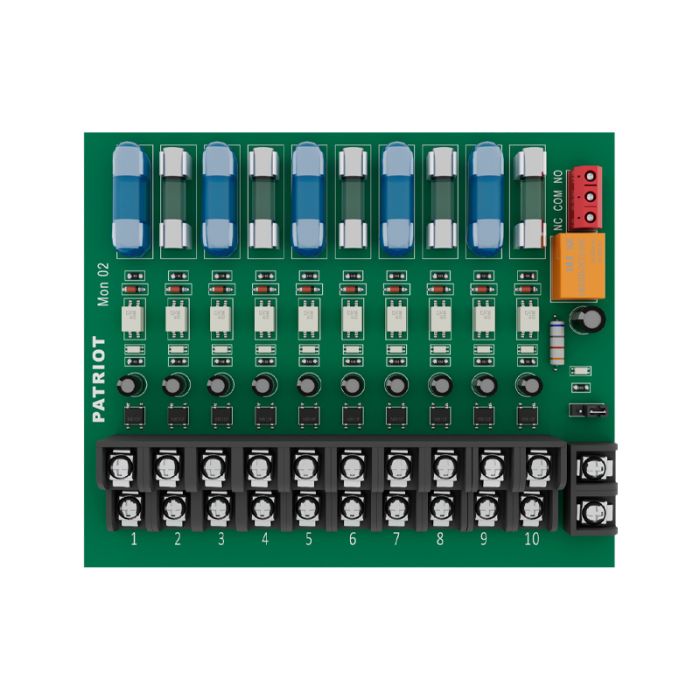

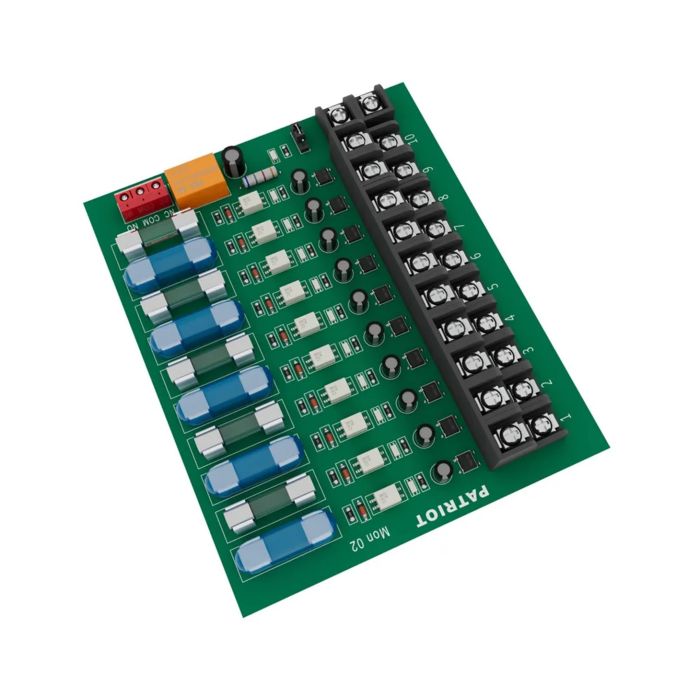

Monitored Power Distribution Board MON 02
A compact, user-friendly solution for low-voltage power distribution. Featuring 10 individually fused and monitored outputs, advanced SMD technology, and compatibility with 12-24V AC/DC systems.
- User friendly solution for low voltage power distribution applications.
- State-of-the-art Surface-Mount Device Technology (SMD) technology.
- 10 individually fused and monitored outputs.
- Operating voltage 12-24V AC/DC.
- Output terminal blocks
- Individual circuit LED(Green=OK)
- Individual circuit fuses (1A each)
- 24VAC operation LED
- Input terminal (Max total current =10A)
- 12VDC/24VAC jumper link
- Common fault relay output (NC-Com-NO)
- Common fault LED
- Model: MON 02
- Input voltage: 12-24V AC/DC
- Output: 10 x fused and monitored outputs
- Total current: 10A Max
- Relay rating: 3A@250V AC / 30V DC
- Size: 110 x 93mm
| Format | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
|
Specsheet | PDB10WAY/MON02 Data Sheet | 387.2 KB | Download |
Output Terminal Blocks
Individual Circuit LED(Green=ok)
Individual Circuit Fuses (1A Each)
24VAC Operation LED
Input Terminal (Max total current =10A)
12VDC/24VAC Jumper Link
Model: Mon 02
Input Voltage:12V-24V AC or DC
Output: 12V-24V AC or DC
Total Current: 10A Max
Relay Rating: 1A@0-250V AC or DC
Size: 110 x 93mm
