ROSAC-825IP-A
SKU
ROSAC-825IP-A
AC-825IP Advanced Scalable Networked Access Platform
The AC-825IP is a scalable networked access control unit for medium- to high-scale security systems, supporting up to 4 doors via Wiegand protocol and 2 doors via OSDP. It provides encrypted TCP/IP communication to Rosslare's AxTraxNG server, onboard inputs and outputs for door control, and capacity for up to 100,000 users with up to 500,000 history log entries.
Designed as a modular access control platform, the controller includes one onboard expansion slot and can connect up to 12 additional expansion boards via OSDP. With D-805 door expansion boards, a single AC-825IP can scale to handle up to 58 doors, making it suitable for commercial and institutional installations that need centralised control, secure network communication and room to expand.
Key Features
- Scalable architecture supports growth from onboard door control to larger OSDP expansion deployments.
- Encrypted TCP/IP communication supports secure data exchange with the AxTraxNG server.
- Wiegand and OSDP reader support gives installers flexibility across mixed access control layouts.
- High user and event-log capacity suits sites with heavier credential and audit trail demands.
- Real-time clock retention helps maintain timing continuity without routine clock-battery replacement.
| Format | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
|
Manual | Rosslare AC825IP Manual | 2.1 MB | Download | |
|
|
Specsheet | AC825 Data sheet | 1 MB | Download | |
|
|
Specsheet | ROSAC-825IP-A_um_1 | 2.1 MB | Download | |
|
|
Specsheet | ROSAC-825IP-A_ds_1 | 1 MB | Download |
- 4 Door Networkable IP Controller
- 1 Onboard Expansion Slot &
- 16 Expansion Boards via OSDP
- .
The AC-825IP is a state-of-the-art 4-door networked access controller and is the backbone of a medium-scale to high-scale security system. The controller comes with one onboard expansion slot and can be further expanded by connecting up to 16 expansion boards via OSDP*. Using only D-805 door expansion boards, a single AC-825IP can handle up to 74 doors and 60,000 users. Driven by AxTraxNG Rosslares powerful, flexible, and easy-to-use software the system provides an ideal modular and expandable solution for commercial and institutional needs.
GENERAL DESCRIPTION

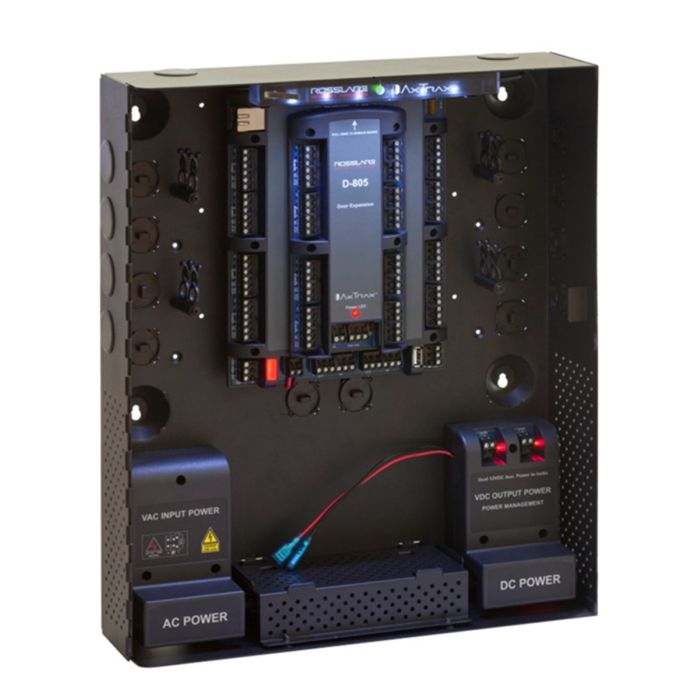

The AC-825IP features a new spacious and lockable metal enclosure that includes a control board, power switcher, built-in power management board/charger, sounder, and a revolutionary enclosure illumination bar that lights up when the enclosure is opened.
Each AC-825IP access control unit (ACU) supports up to 4 doors (In/Out) via Wiegand protocol and 2 doors via OSDP, each with 2 inputs and 1 output. Four additional auxiliary inputs and 2 auxiliary outputs are also on board.
The AC-825IP includes AES128-bit encrypted communication via TCP/IP to an AxTraxNG server, and has an additional RS-485 bus for expansion connectivity*.
MAIN FEATURES
* Up to 74 doors, 60,000 users, and 500,000 history log entries (FIFO) per ACU
* Onboard TCP/IP networking with AES 128-bit data encryption to an AxTraxNG server, bi-directional push communication for enhanced data transmission speed and reliability
* Supports up to 6 doors (Wiegand format/OSDP readers), each with 2 inputs and 1 output.
* 4 auxiliary inputs and 2 auxiliary outputs
* Supports 2 OSDP readers
* One onboard expansion slot and an additional 16 expansion boards via OSDP (R/S/D/P-805)*
* R-805 16 outputs
* S-805 16 inputs
* D-805 4-door expansion
* P-805 16 inputs and 8 outputs
* An additional ME-1505 metal enclosure holds 2 expansion boards and includes all the innovative features of the AC-825IP enclosure
* Real-time clock keeps time for up to 2 weeks without power (no batteries to replace)
* Spacious and lockable metal enclosure, features cable twist locks and zip-tie anchors for better cable management
* Power management board indicates battery and power status
* Revolutionary enclosure with: illumination bar that lights up when enclosure is opened; tamper sensing; and power status LED
For a deeper understanding for the AxTraxNG Software
GENERAL DESCRIPTION
The AC-825IP features a new spacious and lockable metal enclosure that includes a control board, power switcher, built-in power management board/charger, sounder, and a revolutionary enclosure illumination bar that lights up when the enclosure is opened.
Each AC-825IP access control unit (ACU) supports up to 4 doors (In/Out) via Wiegand protocol and 2 doors via OSDP, each with 2 inputs and 1 output. Four additional auxiliary inputs and 2 auxiliary outputs are also on board.
The AC-825IP includes AES128-bit encrypted communication via TCP/IP to an AxTraxNG server, and has an additional RS-485 bus for expansion connectivity*.
MAIN FEATURES
* Up to 74 doors, 60,000 users, and 500,000 history log entries (FIFO) per ACU
* Onboard TCP/IP networking with AES 128-bit data encryption to an AxTraxNG server, bi-directional push communication for enhanced data transmission speed and reliability
* Supports up to 6 doors (Wiegand format/OSDP readers), each with 2 inputs and 1 output.
* 4 auxiliary inputs and 2 auxiliary outputs
* Supports 2 OSDP readers
* One onboard expansion slot and an additional 16 expansion boards via OSDP (R/S/D/P-805)*
* R-805 16 outputs
* S-805 16 inputs
* D-805 4-door expansion
* P-805 16 inputs and 8 outputs
* An additional ME-1505 metal enclosure holds 2 expansion boards and includes all the innovative features of the AC-825IP enclosure
* Real-time clock keeps time for up to 2 weeks without power (no batteries to replace)
* Spacious and lockable metal enclosure, features cable twist locks and zip-tie anchors for better cable management
* Power management board indicates battery and power status
* Revolutionary enclosure with: illumination bar that lights up when enclosure is opened; tamper sensing; and power status LED
For a deeper understanding for the AxTraxNG Software
