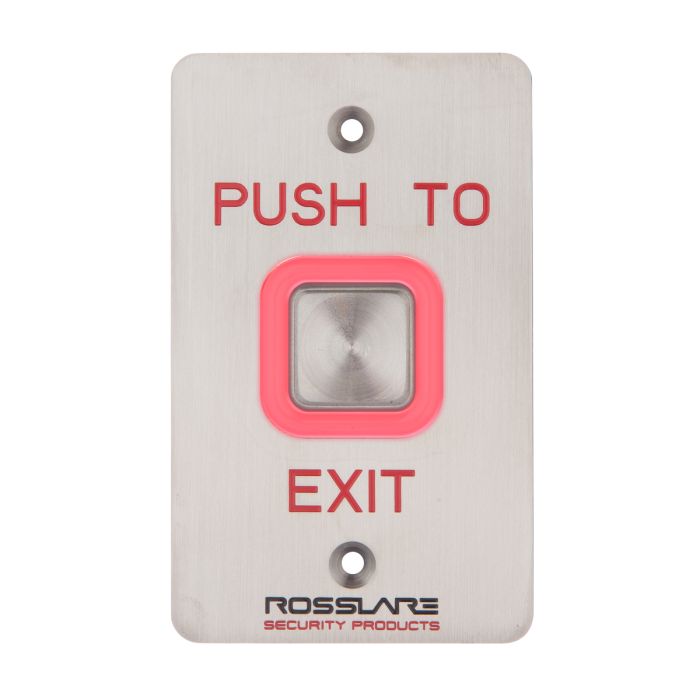

ROSEX-07E0

Rosslare's EX-07 is a heavy duty, non-sparking, non-magnetic, corrosion resistant, illuminated,
anti-vandal, timed digital switch, designed for both indoor and outdoor use.
It features solid state Piezoelectric Switch Technology generating two isolated Form C output relays with no physical movement or moving parts.
Among its many features are: Jumper selectable illumination status with light dimming option,
buzzer mode, full dual-relay output, timed operation and relay toggle option.
The EX-07 mounts directly to a standard US size gang switchbox and is crafted to the highest manufacturing standards out of the finest materials under Rosslare's ISO 9001:2008 Certified
Quality standards.

• Advanced soft touch piezoelectric switch
• New weatherproof design - water and dust proof, grease, oil and other chemical solvent repellent
• Vandal resistant
• Stainless steel mounting plate and tactile button with no moving parts
• Mounting Method Single Gang: Mounts directly to a US gang switchbox
• Backed by Rosslare's International Guarantee and service with ISO9001 (Certified TUV
• Rhineland) level business and manufacturing operations
• Non-sparking, non-magnetic, corrosion resistant
• Light square status indicator and accidental activation hindrance
• Adjustable Output and Led indication time of 1 to 60 seconds Output and indication toggle option
• Jumper selectable illumination status: red, green, or no illumination
• Built-in buzzer with alarm input and sound upon button press options
• Two separate full form-C relay outputs for separate application wiring: N.O. and N.C.
• Input for external lighting alerts for evacuation and other applications
