S9753B
SKU
S9753B

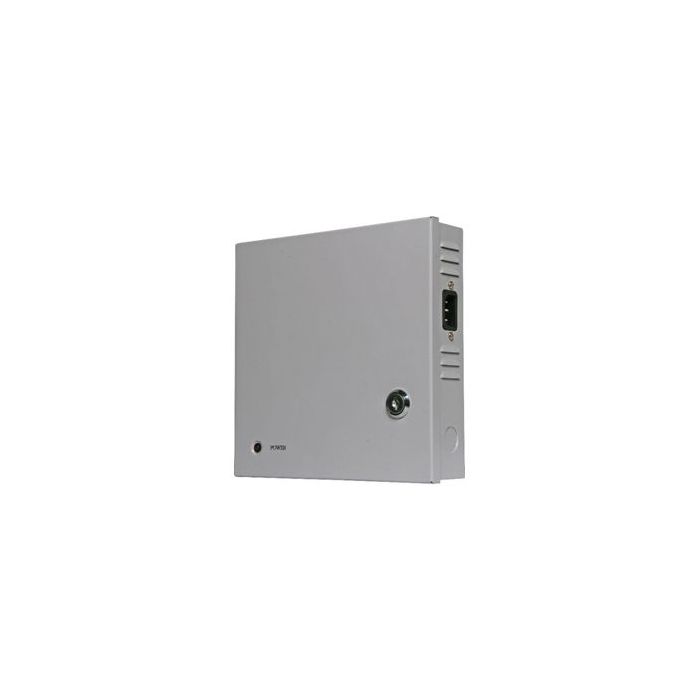

9 Way 12V DC CCTV Power Supply 7.5A - Includes 3 pin Power Cable
- Output Voltage: DC 12V ADJ 11-14V
- Output Current: 7.5A, Peak Value: 10A
- ""Output Power: 90W, Peak Value: 120W
- Dimensions: 203x203x54mm
Designed for powering up to a maximum of nine 12V DC CCTV cameras.
Each output is individually fused and can be set on or off via internal jumpers.
There is a host of protection on each output to prevent spikes and surges damaging the connected cameras.
Separate screw terminals are provided for each circuit. Overall output voltage can be internally adjusted from 11-14V DC.
The design includes output current limiting and over voltage protection. Overall total max load is 7.5A.
Housed in a sturdy compact steel enclosure with lockable door.
Field wiring access is via a rear panel cutout or 3 conduit knockouts on the side. Indoor use only.
Features
Short Circuit Protection
Overcurrent Protection
Overvoltage Protection
750
Each output is individually fused and can be set on or off via internal jumpers.
There is a host of protection on each output to prevent spikes and surges damaging the connected cameras.
Separate screw terminals are provided for each circuit. Overall output voltage can be internally adjusted from 11-14V DC.
The design includes output current limiting and over voltage protection. Overall total max load is 7.5A.
Housed in a sturdy compact steel enclosure with lockable door.
Field wiring access is via a rear panel cutout or 3 conduit knockouts on the side. Indoor use only.
Features
Short Circuit Protection
Overcurrent Protection
Overvoltage Protection
