SMART1000
SKU
SMART1000

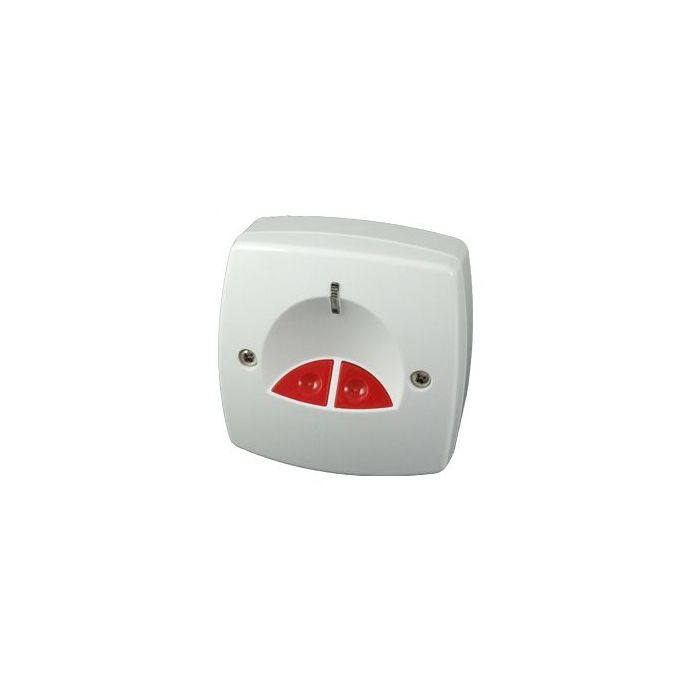

Hold Up Panic Attack Device - Electronic Panic Attack Button - NG, Plus Version, Grade-3 (White) [EPA-NG/PLUS/WH/G3]
| Format | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
|
Manual | Smart SMART1000 Manual | 1.1 MB | Download | |
|
|
Brochure | Smart SMART1000 Brochure | 699.7 KB | Download |
- Second Relay Output (for confirmed operation)
- One or Two Button Operation
- EN50131-1 Grade 3 / PD6662:2010 / BS8243:2010
- Voltage Range: 12v DC
The EPA - NG is the most advanced Hold-Up device available on the market today.
Packed with innovative features, this electronic unit is a versatile device capable of many functions.
Key Features:
Second Relay Output (for confirmed operation)
One or Two Button Operation
Timed Delay Operation
LED Indicator
Latching or Non Latching
Selectable EOL Settings
Keyless Reset
PD6662:2010
Specification:
Connections: 10 PCB Terminals
Operation Method: Single or Dual Push Button
Material: ABS
Dimensions mm: 85 x 85 x 39
PA Output: Programmable Latching / Non Latching Relay
Voltage Range: 12v DC
Current: 10mA @ 12Vdc
Output Option: N/O or N/C Output / Instant or Delay Programmable
Temperature Range: -15 C to +40 C
Tamper: Cover
Reset Method: Dual Push
Colours: White
Confirmed Output: N/C Relay
Standards: EN50131-1 Grade 3 / PD6662:2010 / BS8243:2010
Environmental Class: II1003
Packed with innovative features, this electronic unit is a versatile device capable of many functions.
Key Features:
Second Relay Output (for confirmed operation)
One or Two Button Operation
Timed Delay Operation
LED Indicator
Latching or Non Latching
Selectable EOL Settings
Keyless Reset
PD6662:2010
Specification:
Connections: 10 PCB Terminals
Operation Method: Single or Dual Push Button
Material: ABS
Dimensions mm: 85 x 85 x 39
PA Output: Programmable Latching / Non Latching Relay
Voltage Range: 12v DC
Current: 10mA @ 12Vdc
Output Option: N/O or N/C Output / Instant or Delay Programmable
Temperature Range: -15 C to +40 C
Tamper: Cover
Reset Method: Dual Push
Colours: White
Confirmed Output: N/C Relay
Standards: EN50131-1 Grade 3 / PD6662:2010 / BS8243:2010
Environmental Class: II1003
