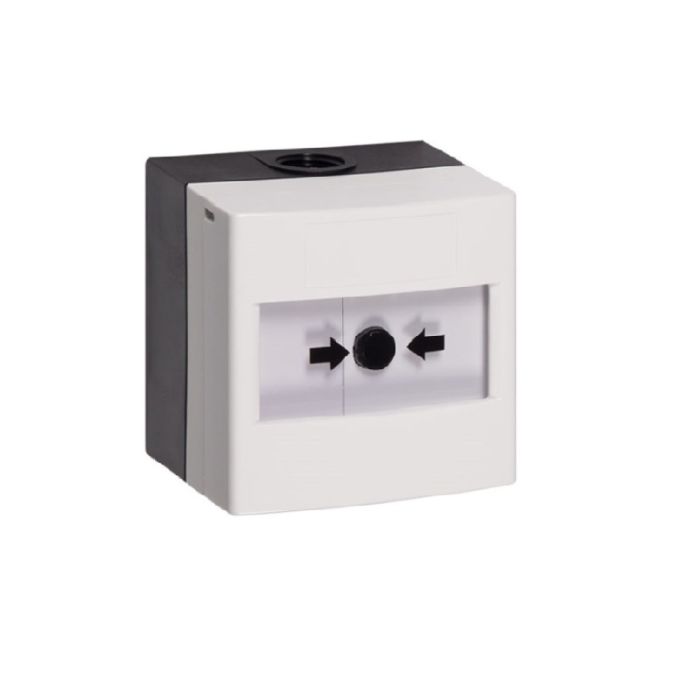

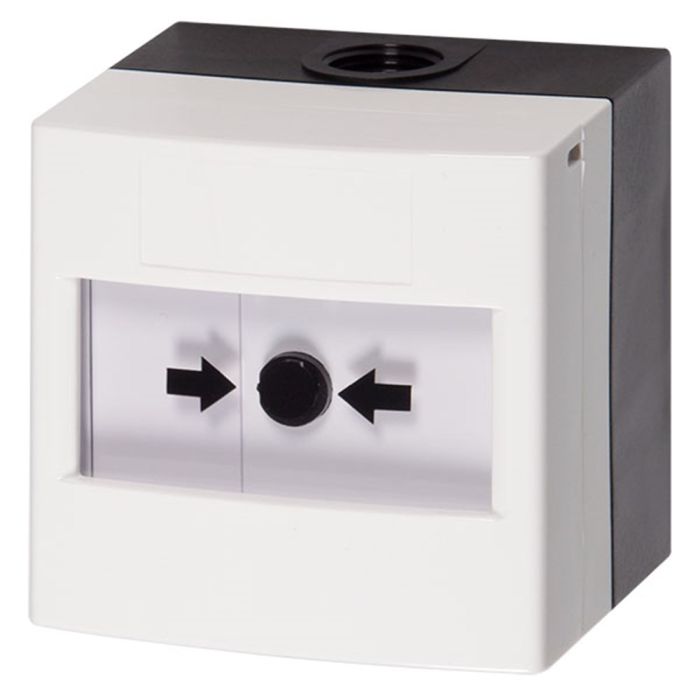

STI-WRP-W-11

The ‘Reset’ is a unique manual call point that mimics the feel of breaking glass whilst offering the user the benefits and environmental advantages of a re-settable operating element.

The ‘Reset’ uses a simple yet ingenious patented mechanism which consists of a rigid plastic operating element and an over centre spring mechanism. This arrangement provides real action on operation and simulates break glass activation. An activation indicator drops into view at the top of the window after the ‘Reset’ has been operated.

The unit is then simply reset with a key and is ready for re-use straight away. Glass appearance maintains operator deterrence Positive activation that mimics the feel of breaking glass Visible warning flag confirms activation Simple key to reset operating element – no broken glass, No glass elements to break, lose or incorrectly fit during installation. Complete functional test with every activation Extremely attractive, high value look and feel Low profile, heavy-duty terminations. Available in five colours

APPLICATIONS
The ‘Reset’ call point is compatible with most fire and security alarm systems. It is safe for use in areas where glass cannot be used, e.g. food processing plants and swimming/leisure centres. As the unit can be simply reset it provides an ideal solution for areas that suffer from a high number of false activation such as schools, shopping centres and other public places.

Technical Specification
Current Rating: 3 Amps 12 – 24V DC
3 Amps 125 – 250V
Housing and Mounting: Box Material Polycarbonate
Electrical Contact Material: Silver plated brass
Operating Temperature: -20 C to +65 C
Installation Terminal Conductor Size: 0.5mm – 2.5mm
Colours:  White
Mounting: Flush or surface
with back box
