TRO110

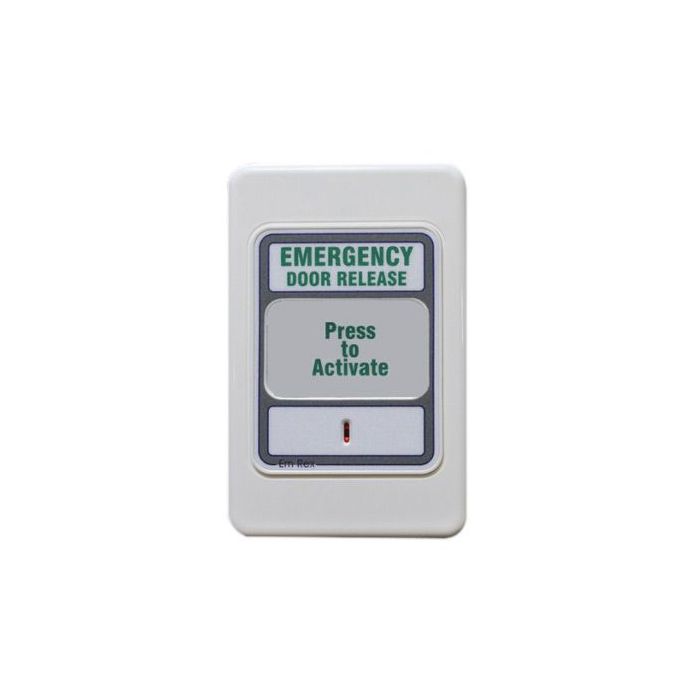

The Em-Rex® (Emergency Exit Device) is an emergency door release unit, which can be used on its own or in conjunction with the Prox-Rex units, to make up a total access controlled exit solution.

Features

• Field re-settable unit, a reset tool is supplied with every unit
• No breaking of glass to operate
• Two outputs; one set to break lock power and one set for status monitoring
• Visual confirmation of activation
• Audible conformation of activation
• Ancillary input for remote operation of sounder
• Minimal moving parts
• Complies with local codes for emergency egress

Specifications

• Single gang profile fits standard electrical flush box
• Power requirements 9 to 16Vdc (only if using on board sounder)
• 10mA at 13.6 Vdc
• Two sets Clean N/O and N/C outputs (Changes status upon activation)
• The contacts are rated at 1 Amp 30Vdc
• The faceplate will not deteriorate over time and is easily cleaned.
• C-Tick Certified & complies with RoHS and  BS 5839 Pt 2. Standard for "Break-Glass Panels"
