UPROXWIREPORT
SKU
UPROXWIREPORT

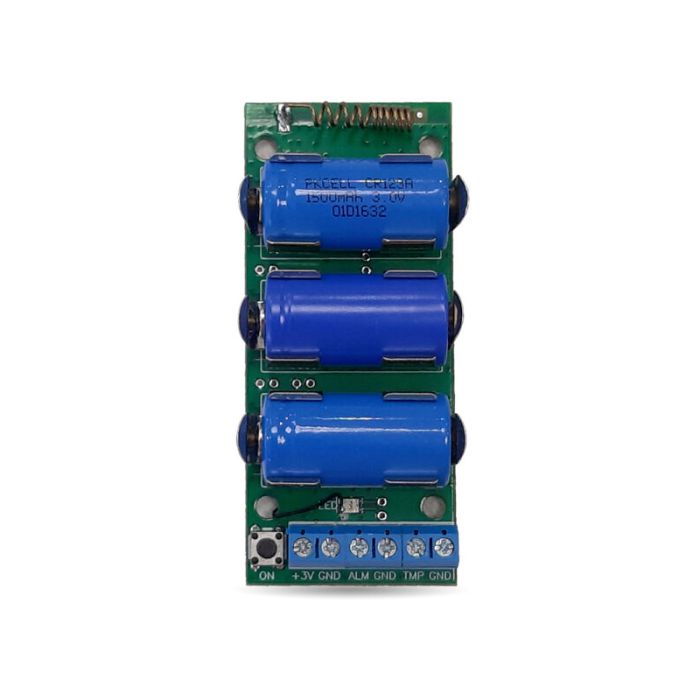

U-Prox Wireport – is a wireless module with 3 inputs, designed to connect wired equipment (detectors, IR barriers etc.) to wireless U-Prox control panel. It has 3V controlled power output and can be built into detectors. The device is connected to the control panel and is configured with the U-Prox Installer mobile application.
- Module with 3 inputs: ALM1, ALM2 and TMP
- Power output 3V, 50 mA max
- Three CR123A batteries
- Up to 5 years of battery life
The device is connected to the control panel and is configured with the U-Prox Installer mobile application.
Format | Label | Description | Type | Size | Download |
---|---|---|---|---|---|
Manual | UPROXWIREPORT Manual | 849.7 KB | Download |
- Operating temperature range from 0°C to +55°C
- Dimensions 89.7 x 38.8 x 20.5 mm
