W2169
SKU
W2169

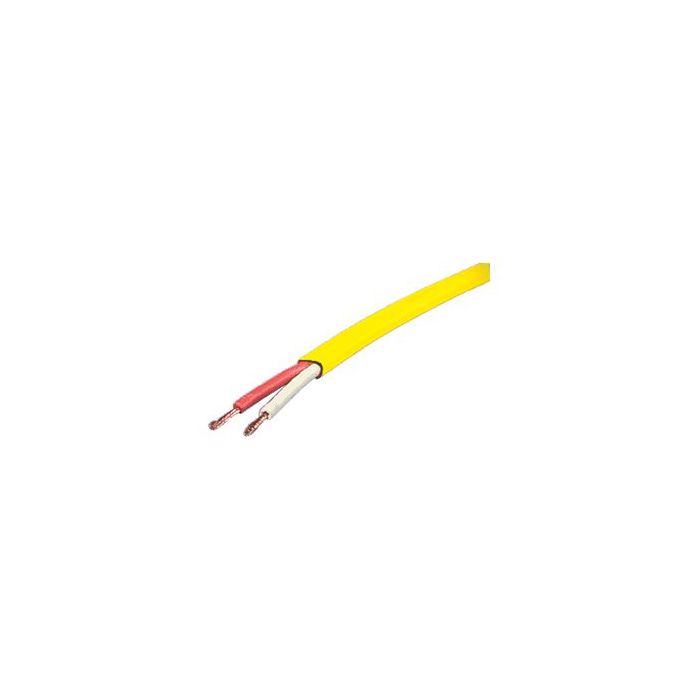

Double insulated PA Cable 24/020 200m Yellow
- Outer Diameter - 3.7x6.0mm
- Material - Bare Copper
- AWG - 0.75mm2 x 2C (18AWG)
- Construction - 24/0.20mm
Insulation
Material - PVC
Average Thickness - 0.63mm
Insulation Diameter - 24mm0.1mm
Cores Assembly - 4.8mm
Jacket
Material - PVC
Average Thickness 0.60mm
Cable Diameter 3.7 x 6.0mm0.1mm
Colour
Insulation - Red, White
Jacket - Yellow
Physical and electrical characteristics
Rated Voltage - 600VAC @ 7.5A
Rated Temperature 75C
Maximum DC Resistance 24.5O/km
Tensile Strength - =10Mpa (insulation and jacket)
Elongation - =65% upward (insulation)
Dielectric Strength - 1kV/min (insulation in water)
Mechanical Characteristics
Aging Condition - 1131C/168hr No crack
Heat Shock - 1212C/1hr No crack
Cold Blend - -202C/4hr No crack674
Material - PVC
Average Thickness - 0.63mm
Insulation Diameter - 24mm0.1mm
Cores Assembly - 4.8mm
Jacket
Material - PVC
Average Thickness 0.60mm
Cable Diameter 3.7 x 6.0mm0.1mm
Colour
Insulation - Red, White
Jacket - Yellow
Physical and electrical characteristics
Rated Voltage - 600VAC @ 7.5A
Rated Temperature 75C
Maximum DC Resistance 24.5O/km
Tensile Strength - =10Mpa (insulation and jacket)
Elongation - =65% upward (insulation)
Dielectric Strength - 1kV/min (insulation in water)
Mechanical Characteristics
Aging Condition - 1131C/168hr No crack
Heat Shock - 1212C/1hr No crack
Cold Blend - -202C/4hr No crack674
