WT5805HTC

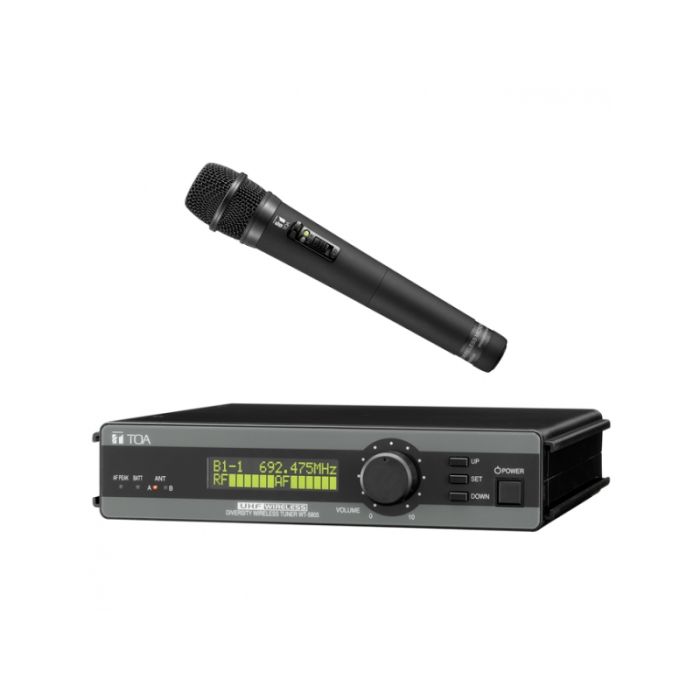

TOA WT5805HTC UHF Diversity Wireless Receiver w/ WM5225 Handheld Electret Condenser Microphone. 636-666MHz
TOA WT5805HTC is a 64 channel UHF diversity wireless microphone receiver designed for use with the TOA 5000 series wireless microphone system.
Launch into the world of reliable TOA wireless microphone systems. Designed for use with a range of wireless handheld microphones, to lapels, to headsets.
The receiver features a half-rack space or surface mounted unit that features 64 UHF selectable frequencies, automatic channel detection, radio frequency scan (RF check), an intuitive control panel and a large LCD. Balanced XLR and unbalanced 1/4″ phone connections are located on the rear. BNC antenna inputs and outputs are provided, and the receiver may be used for distributing radio signal to additional receivers. Rack mountable.
Wireless Microphones?work on radio frequencies that enable the sound to travel through a transmitter to a receiver. Wireless Microphones are cable free. No need for annoying cables.
Wireless Microphone systems are ideal for a variety of applications ? everyone from stage performers to reporters to educators.
Package Includes: The price listed here is for the TOA WT5805HTC w/ WM5225 Electret Condenser Microphone. Available in the following bands;
636-666MHz
- Compact half-rack size
- Scanner function
- Transmitter battery status display
- 64 selectable channels
- diversity reception
- Two detachable antennas
- Optional Rack-Mount Kits -MB-WT3, MB-WT4
- MB-WT3 One WT-5800/WT-5805)
- MB-WT4 Two WT-5800/WT-5805)
- The WM-5225 Wireless Microphone employs an electret condenser microphone capsule
| Power Source | AC mains (supplied AC adapter must be used) |
|---|---|
| Power Consumption | 200 mA (12 V DC) |
| Receiving Frequency | 636-666MHz |
| Channel Selectable | 64 selectable frequencies |
| Receiving System | Double super-heterodyne |
| Diversity System | Space diversity |
| Mixing Output | MIC/LINE (selectable): -60 dB (*1) (MIC)/-20 dB (*1) (LINE), 600 Ω phone jack (unbalanced), 600 Ω XLR-3-32 type connector (balanced) |
| Mixing Input | -20 dB (*1), 10 kΩ, unbalanced, phone jack |
| Antenna Input | 75 Ω, BNC (phantom powering for antenna), 9 V DC, 30 mA (max) |
| Receiving Sensitivity | 90 dB or more, Signal to Noise ratio (20 dBμV input, 40 kHz deviation) |
| Squelch Sensitivity | 16 – 40 dBμV variable |
| Squelch System | Using together of noise SQ, carrier SQ and tone SQ |
| Tone Frequency | 32.768 kHz |
| Indicator | Audio (6 steps), RF (6 steps), ANT A/B, Audio (peak), Battery alarm |
| Channel Check | Usable frequencies scanning |
| Signal to Noise Ratio | 110 dB or more (A-weight, unbalanced output) |
| Harmonic Distortion | 1 % or less (typical) |
| Frequency Response | 100 Hz – 15 kHz, ±3 dB |
| Operating Temperature | -10 ℃ to +50 ℃ (14 ゜F to 122 ゜F) |
| Operating Humidity | 30 % to 85 %RH (no condensation) |
| Finish | Resin, black |
| Dimensions | 210 (W) × 44 (H) × 205.1 (D) mm (8.27″ × 1.73″ × 8.07″) |
| Weight | 700 g (1.54 lb) |
| Accessory | AC adapter (*3)…1, Whip antenna…2, Rubber foot…4 |
| Option | Mounting bracket kit: MB-WT3 (for rack mounting one WT-5805 unit) MB-WT4 (for rack mounting two WT-5805 units) |
