24VDC2-5A

24VDC2500/1 + PL240/8 Switch Mode 24 VDC 2.5 A Inline Power Supply with PL240/8 Power Lead

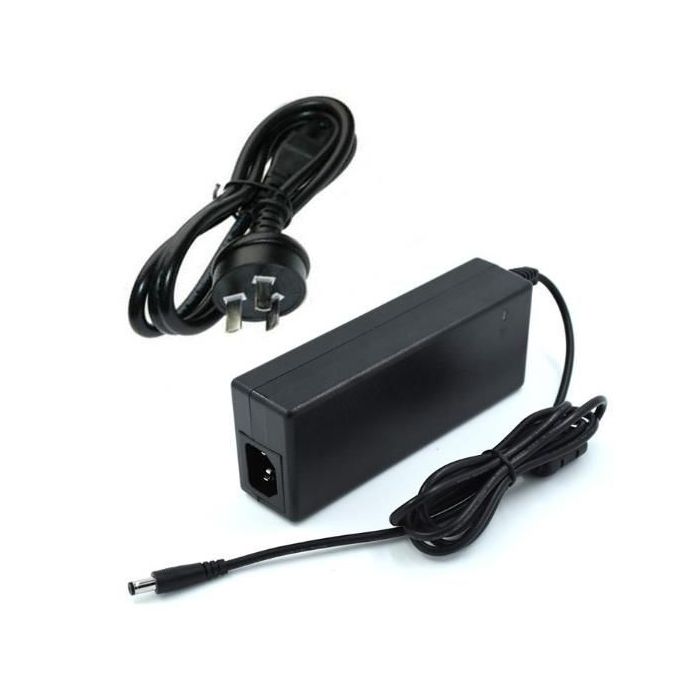

The 24VDC2500/1 + PL240/8 is an inline switchmode power supply for equipment requiring a 24 VDC supply rated at 2.5 A. The datasheet identifies the power supply as 24VDC2500-1, with 100-240 V AC 50/60 Hz input, 60 W output capacity, black casing, and a 2.1 x 5.5 x 12 mm reversible DC plug set to C+.

This power supply and PL240/8 power lead combination suits low-voltage installations where the specified 24 VDC supply, Fig 8 input format, and matching lead are required together. It is listed as RoHS compliant and approved and manufactured to Australian standards, supporting straightforward selection for procurement, replacement, and installation planning.

Key Features

• Supports 24 VDC equipment with a 2.5 A, 60 W output rating.
• Wide 100-240 V AC input range helps simplify mains-side specification.
• Inline switchmode format supports neat integration with equipment setups.
• Reversible C+ DC plug arrangement assists with matching the specified connection format.
• Compliance references support confident selection for Australian supply requirements.
