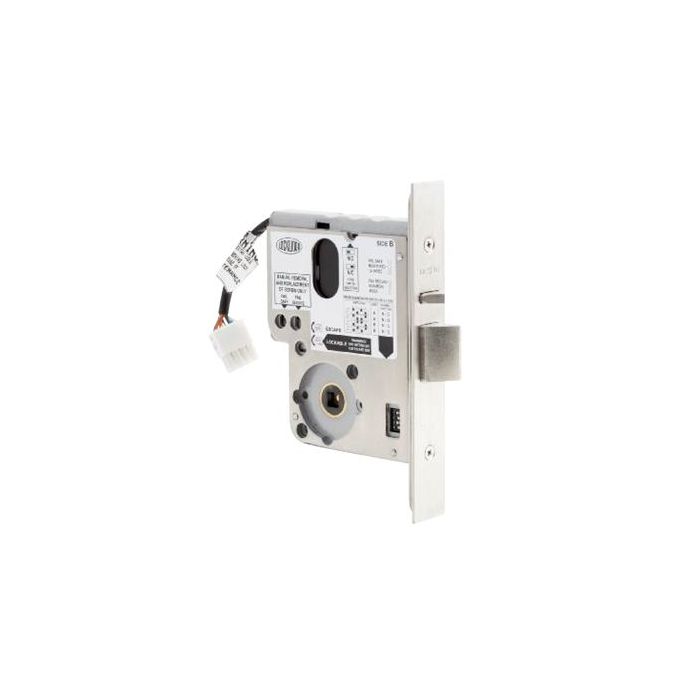

3579HSELM0SC
Lockwood Fully Mon, No Cyl- SCEC endorsed ( Secure Area) Fail safe & Fail Secure Configurable.
Designed and manufactured in Australia, the 3579HS series electric mortice is designed for unique applications where fail secure functionality is required externally with fail safe functionality on the inside. To achieve this function the lock must be used in conjunction with an electric strike. The 3579HS is constructed from the same material as the 3579 counterpart.
Key Features
Designed with flexibility in mind, the one lock can cover all functions and is easily configured on site for the required application.
- Stainless Steel Latch and Faceplate
- Stainless steel plates that encapsulate the body against attempted vandalism
- Available in Monitored versions only
Monitoring Features
- Dead latched and Locked
- Door position/Reed switch
Lock Functions
The 3579HS series lock is designed to provide internal emergency egress on doors whereby the door remains secure on the outside in the event of a fire alarm or break glass event.
A typical door set up would include the following hardware:
- Proximity readers on both sides of the door to gain access either way
- 3579HS Electric Mortice Lock set to fail safe inside. Note the lock remains in the locked state ( externally)l 00% of the time if power is applied or not.
- Dual key override monitoring
- Request to exit/REX
- LED indication
- Electric strike set to fail secure
- Break glass or Fire Panel connected to the mortice lock only
Field Changeable Settings
- Fail safe/fail secure configuration.
To enter or exit the door the user would swipe a proximity card to the reader. Upon authorisation from the EAC panel the electric strike would unlock, allowing the user to open the door. The electric mortice lock does not change state.
- Multi-voltage-will work on 12-24 Vdc systems.
- Handing- left hand and right hand doors
- Selection of free lever or locked lever on both sides of the door
- Key override monitoring either side of the door
- Monitoring contacts- normally closed, normally closed
Note: this lock is designed to operate in conjunction with an electric strike. The lock will never unlock electrically from the external side. In the event of an emergency (fire alarm or break glass activation), power is cut to the electric mortice lock & places it in a fail safe mode on the internal side only. The mortice lock remains in a fail secure state on the external side.
Note: The 3579HS Series lock can never be electrically unlocked from the outside. A secondary locking device ( electric strike) must be used in conjunction with this lock
| Format | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
|
Specsheet | 3579HS data sheet | 1.5 MB | Download | |
|
|
Specsheet | High Security Mortice Spec sheet | 1.3 MB | Download |
- SCEC endorsed for secure area
- 12-24VDC
- Left & Right Handed
- External Handle set to Fail Secure
Is it typically used in areas where a higher SCEC rating is required via fail secure externally,
yet egress is granted internally.
The function is usually:
Reader in/reader out which releases a fail secure strike. Mortice lock handles are secure.
In the event of duress, egress, power out or alarm, the strike will lock.
Externally the mortice lock will remain fail secure.
Internally the lever handle will become fail safe for emergency exit.
Note: this lock is desgined to work in conjuctiuon with an electric strike.
The lock will never unlock electrically from the external side692
