AC825IP
Rosslare IP 4 Door Expandable Controller
The AC-825IP is a 6-door (4 Wiegand format & 2 OSDP readers) networked access controller suitable for a medium-scale to high-scale security system. The controller comes with one onboard expansion slot and can be further expanded by connecting up to 12 expansion boards via OSDP. Using D-805 door expansion boards, a single AC-825IP can handle up to 58 doors and 100,000 users. Driven by AxTraxNG™ – Rosslare’s powerful and flexible software – the system provides a modular and expandable solution for commercial and institutional needs. GENERAL DESCRIPTION The AC-825IP access control unit (ACU) supports up to 4 doors (In/Out) via Wiegand protocol and 2 doors via OSDP, each with 2 inputs and 1 output. Four additional auxiliary inputs and 2 auxiliary outputs are also on board. The AC-825IP includes an encrypted communication via TCP/IP to an AxTraxNG server, and has an additional RS-485 bus for expansion connectivity. In addition, the AC-825IP and its expansions can be placed in a lockable metal enclosure, the ME-1515, which includes a control board, power switcher, built-in power management board/charger, sounder, and a revolutionary enclosure illumination bar that lights up when the enclosure is opened.
- Up to 58 doors, 100,000 users, and 500,000 history log entries (FIFO) per ACU
- Onboard TCP/IP networking with data encryption to an AxTraxNG server, bi-directional push communication for enhanced data transmission speed and reliability
- Supports up to 6 doors (4 Wiegand format & 2 OSDP readers), each with 2 inputs and 1 output
- 4 auxiliary inputs and 2 auxiliary outputs
- Supports 2 OSDP readers
- One onboard expansion slot and an additional 12 expansion boards via OSDP (R/S/D/P-805)
- R-805 – 16 outputs
- S-805 – 16 inputs
- D-805 – 4-door expansion
- P-805 – 16 inputs and 8 outputs
- ME-1515 metal enclosure holds 2 expansion boards or an AC-825IP board with a C14 power plug and supports Pull-Safe™ cable locks, for secured wiring
- Real-time clock keeps time for up to 2 weeks without power (no batteries to replace)
- Spacious and lockable metal enclosure, features cable twist locks and zip-tie anchors for better cable management
- DIN rail mounting option for space saving with no additional enclosure needed
- Power management board indicates battery and power status
- Revolutionary enclosure with illumination bar that lights up when enclosure is opened, tamper sensing, and power status LED
| Format | Label | Description | Type | Size | Download |
|---|---|---|---|---|---|
|
Manual | Rosslare AC825IP Manual | 2.1 MB | Download | |
|
|
Specsheet | AC825 Data sheet | 1 MB | Download |
- 4 Door Networkable IP Controller
- 1 Onboard Expansion Slot &
- 16 Expansion Boards via OSDP
- .
GENERAL DESCRIPTION

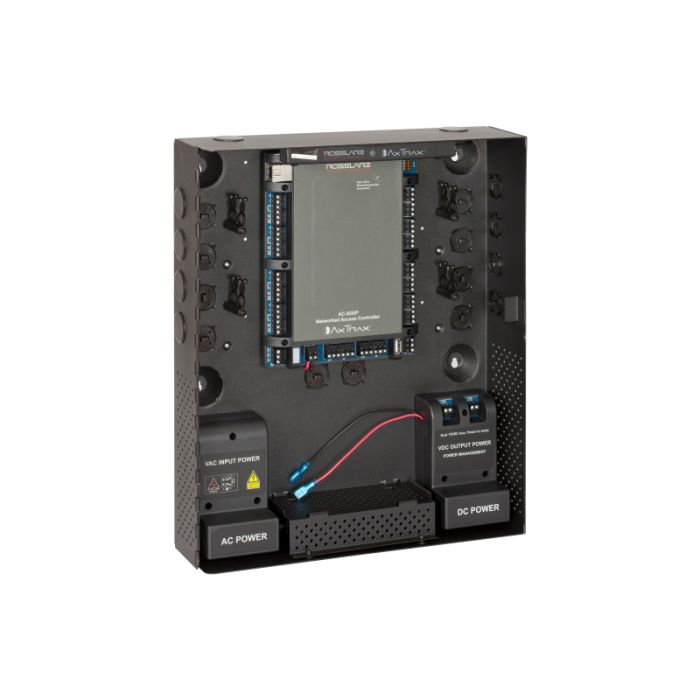

The AC-825IP features a new spacious and lockable metal enclosure that includes a control board, power switcher, built-in power management board/charger, sounder, and a revolutionary enclosure illumination bar that lights up when the enclosure is opened.
Each AC-825IP access control unit (ACU) supports up to 4 doors (In/Out) via Wiegand protocol and 2 doors via OSDP, each with 2 inputs and 1 output. Four additional auxiliary inputs and 2 auxiliary outputs are also on board.
The AC-825IP includes AES128-bit encrypted communication via TCP/IP to an AxTraxNG server, and has an additional RS-485 bus for expansion connectivity*.
MAIN FEATURES
* Up to 74 doors, 60,000 users, and 500,000 history log entries (FIFO) per ACU
* Onboard TCP/IP networking with AES 128-bit data encryption to an AxTraxNG server, bi-directional push communication for enhanced data transmission speed and reliability
* Supports up to 6 doors (Wiegand format/OSDP readers), each with 2 inputs and 1 output.
* 4 auxiliary inputs and 2 auxiliary outputs
* Supports 2 OSDP readers
* One onboard expansion slot and an additional 16 expansion boards via OSDP (R/S/D/P-805)*
* R-805 16 outputs
* S-805 16 inputs
* D-805 4-door expansion
* P-805 16 inputs and 8 outputs
* An additional ME-1505 metal enclosure holds 2 expansion boards and includes all the innovative features of the AC-825IP enclosure
* Real-time clock keeps time for up to 2 weeks without power (no batteries to replace)
* Spacious and lockable metal enclosure, features cable twist locks and zip-tie anchors for better cable management
* Power management board indicates battery and power status
* Revolutionary enclosure with: illumination bar that lights up when enclosure is opened; tamper sensing; and power status LED
